2.54 Pin Waterproof Membrane Keypad

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-980
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: Waterproof Membrane Switch With 2.54 Pin PET Circuit And Connector Application: Instruments Machine, Remote Controller
Color: Pantone Or RAL Color, Yellow, Red, White Materials: PET Matte Look
Rear Adhesive: 3M467 Or 3M468 Size: Rectangle Shape, Customized Size
Connector Type: With Black Connector Key Type: Embossed Keys
Material: PET PC Keypad: Custom Membrane Keypad
Key Option: Flate Or Tactile Key Style: Matrix Keypad
High Light:

PET circuit connector Waterproof Membrane Keypad

,

2.54 Pin Waterproof Membrane Keypad

,

PET PC tactile membrane switch

Waterproof Membrane Switch with 2.54 Pin PET circuit and connector







Custom Membrane Switches and Keypads

Membrane switches are an essential component of products ranging from household appliances to sophisticated medical equipment. Achieving the right design depends on the technology and manufacturing quality provided by a custom membrane switch manufacturer.





1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours






FAQ:



Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

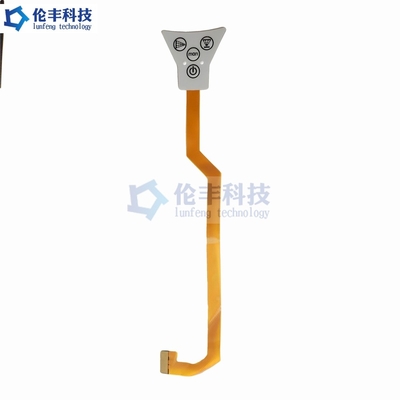

2.54 Pin Waterproof Membrane Keypad 0

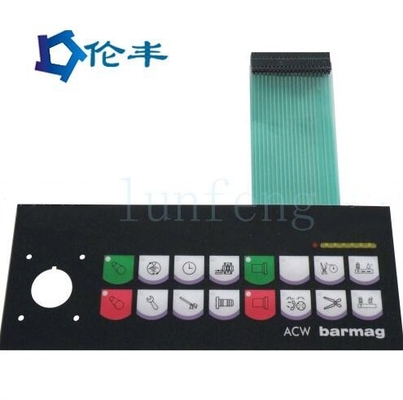

2.54 Pin Waterproof Membrane Keypad 12.54 Pin Waterproof Membrane Keypad 2

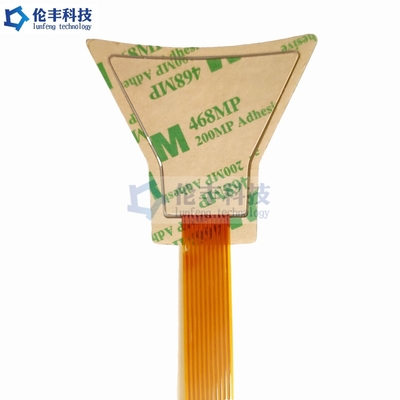

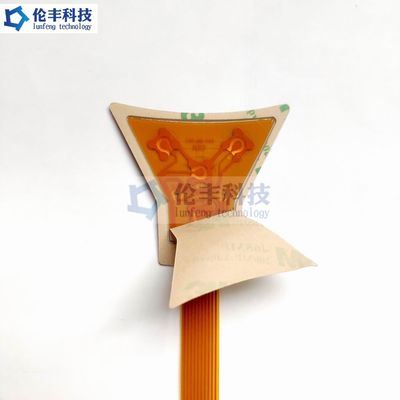

2.54 Pin Waterproof Membrane Keypad 32.54 Pin Waterproof Membrane Keypad 42.54 Pin Waterproof Membrane Keypad 52.54 Pin Waterproof Membrane Keypad 62.54 Pin Waterproof Membrane Keypad 7



About US:

Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).

In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.

Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.

We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!

Welcome to contact us !



-------------------------------------------------------------------------------------------------------

Shenzhen Lunfeng Techonology Co., Ltd



2.54 Pin Waterproof Membrane Keypad 8
2.54 Pin Waterproof Membrane Keypad 9
2.54 Pin Waterproof Membrane Keypad 10
