| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | GPO007 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product: | Acrylic Front Panel Acrylic PMMA Lens With 3M467 3M468 | Application: | 3C Electronics Display Protection, Industrial Control |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Black | Material: | Acylic |
| Rear Adhesive: | 3M468 | Feature: | Transparent LCDs |
| Processing Method: | Laser Cutting | Size: | Customized Size |
| Printing: | Screen Printing /digital Printing | ||
| High Light: | 3M467 Acrylic Front Panel,PMMA lens Acrylic Front Panel,3M468 front overlay |
||

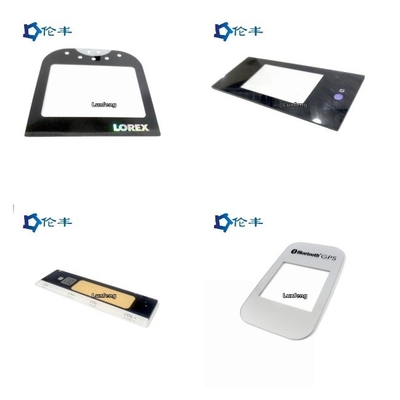

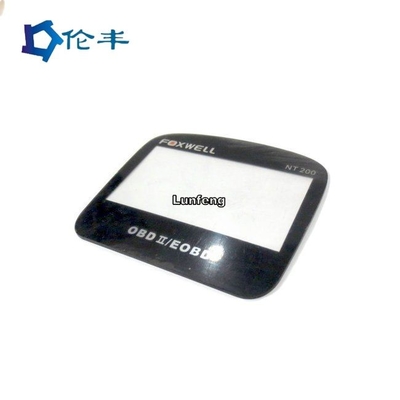

Acrylic front panel acrylic PMMA lens With 3M467 3M468
Strength:
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Description |
Technical capabilities |
| Available Material |
PMMA, PC, PVC, PET, ABS, PP, etc.
|
| Standard thickness |
PMMA: 0.5-10.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
PC: 0.125—6.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
| Max printing size |
1300x700 mm
|
| Max cut size |
2500x1000mm
|
| Color |
As requested
|
| Double side adhesive |
3M93010, 3M93020, 3M9080, VHB4920,etc.
|
| Operating temperature |
PC: -40°C- 90°C PMMA: -40°C- 80°C
|
| Finish |
anti-glare surface, anti-fog surface, anti-fingerprint surface, gloosy surface, frosted surface
|
| Printing |
Silk-screen printing
|
| Molding method |
By CNC cutting, without tooling
|
| Advantage |
Glossy surface, colorful printing appearance, good texture, safety and eco-friendly
|
| OEM services |
Silk screen printing, custom die cutting/CNC cutting
|
| Shipping method |
DHL, TNT, Fedex, UPS, ShunFeng etc.
|
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
