3M Adhesive Membrane Touch Switch 3M9080 Silicone Rubber Pad

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: SRK016
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Costom Silicone Rubber Keypad Membrane Switch With 3M Adhesive Application: Industrial Control;
Colors: Pantone/ RAL Color, Yellow, Red, White, Black Material Surface: Matte Surface
Rear Adhesive: 3M9080 Feature: Durable,waterproof
Usage: OEM Electronics, Remote Controller Keypad Logo: Can Be Printed
Function: Electronic Input
High Light:

3M adhesive Membrane Touch Switch


Silicone Membrane Touch Switch


3M9080 Rubber membrane switch pad

costom Silicone Rubber Keypad membrane switch with 3M adhesive

There is a wide range of actuation forces for keypads in different use. According to the difference, silicone keypads are also applied in the following areas.


The actuation force is about 50-80g, which is generally suitable for use in computer keyboards and calculator keys. The pressing force in this range is not high; it is easy to press and has a light tactile feel. It is suitable for rubber keypads that need to be clicked frequently.


The pressing pressure is about 80-120g, which is generally suitable for electrical buttons and remote controls. Its force is suitable, the hand feels comfortable, and the resilience is great.


If the actuation force is 120-180g, it is generally suitable for consumer and industrial electronic products. For example, keypad designed for sound equipment, industrial instruments, and mechanical remote controls. Its pressing force is much larger than that of the second type, and it is generally suitable for relatively large silicone keypads. Its resilience is also superior, but not suitable for products with frequent clicks.


The pressing pressure is more than 180g. In general, this type of pressing rubber keypad is relatively rare. It should be designed and manufactured for special industries, such as medical, aviation, and other industries. It needs frequent use of fingers for a short time, which makes it more acidic.


Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system



Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm



1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:


Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:




2.Mechanical Properties


Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



3.Environmental and Storage Conditions


Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C


40°C, 90%~95%, 240 hours




Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

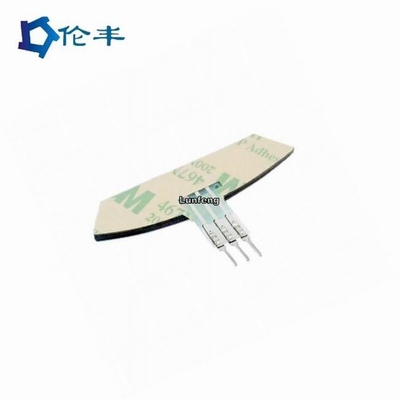

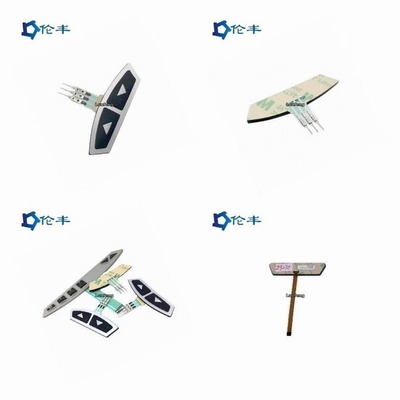

3M Adhesive Membrane Touch Switch 3M9080 Silicone Rubber Pad 0
