PMMA Control Panel Graphic Overlays CNC Die Cutting Front Control Panel

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: GPO025
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: Acrylic Front Panel Graphic Overlay PMMA Touch Panel Application: 3C Electronics Display Protection / Decoration
Colors: Pantone/ RAL Color, Orange, Red, Green Material: Acrylic, PMMA , PC, PVC & Other Plastic
Rear Adhesive: 3M467/ 468 / 9080 Feature: Eco-friendly, High-precision
Processing Method: CNC/ Laser/ Die Cutting
High Light:

PMMA control panel graphic overlays

,

CNC control panel graphic overlays

,

Die cutting front control panel

Acrylic front panel graphic overlay PMMA touch panel




Custom Silk Printing Graphics Overlay Acrylic Front Control Panel



Front Graphics Overlay Acrylic Front Control Panel is the customized OEM design printed interface layer component as protection, logo prompt, functional and user-friendly interface.



Lunfeng could offer adhesive graphic overlay with customized design and shape.




Our Advantage:

We Focus in membrane switch and related items.


Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system



Description

Technical capabilities

Available Material



 PMMA, PC, PVC, PET, ABS, PP, etc.



Standard thickness

 PMMA: 0.5-10.0mm (matt, anti-glare, anti scratch, anti-UV)



 PC: 0.125—6.0mm (matt, anti-glare, anti scratch, anti-UV)



Max printing size

 1300x700 mm



Max cut size

 2500x1000mm



Color

 As requested



Double side adhesive

 3M93010, 3M93020, 3M9080, VHB4920,etc.



Operating temperature

 PC: -40°C- 90°C PMMA: -40°C- 80°C



Finish

 anti-glare surface, anti-fog surface, anti-fingerprint surface,

 gloosy surface, frosted surface



Printing

 Silk-screen printing



Molding method

 By CNC cutting, without tooling



Advantage

 Glossy surface, colorful printing appearance,

 good texture, safety and eco-friendly



OEM services

 Silk screen printing, custom die cutting/CNC cutting



Shipping method

 DHL, TNT, Fedex, UPS, ShunFeng etc.









1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

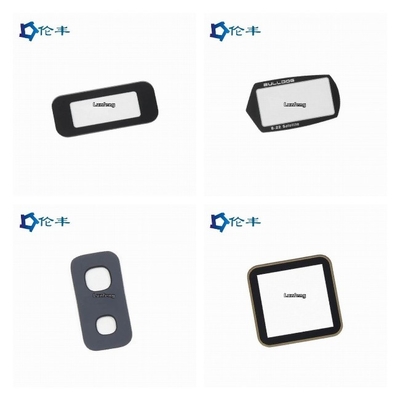

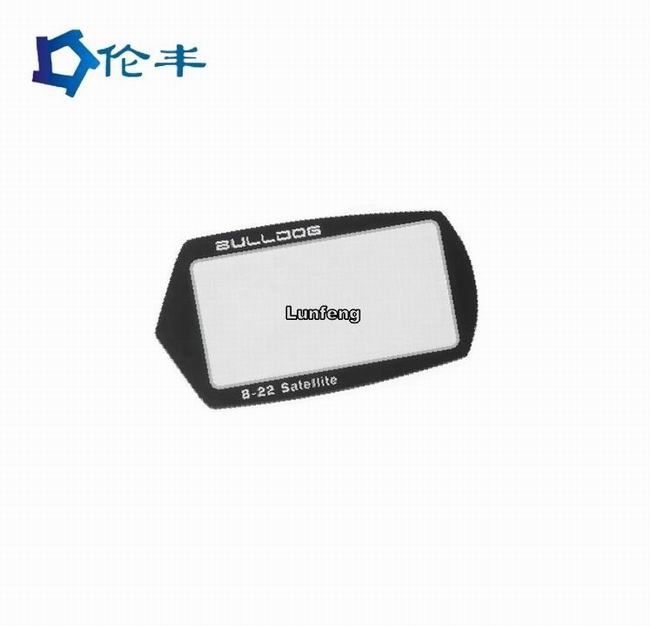

PMMA Control Panel Graphic Overlays CNC Die Cutting Front Control Panel 0PMMA Control Panel Graphic Overlays CNC Die Cutting Front Control Panel 1
