| Product Name: | Metal Dome Push Button FPC Circuit Membrane Switch For Medical Device | Used On: | Medical Device |
|---|---|---|---|
| ColorS: | Pantone RAL Color, Yellow, Blue, Green, Gray | Material: | Matte |
| Rear Adhesive: | 3M468 | Feature: | Metal Domes, Matte Surface, Leds |
| Connector: | 1.0mm Female Connector | Key: | Key Embossing |
| Type: | Backlit/backlight/illuminated | Membrane Switch: | Tactile Membrane Switch Keypad |
| High Light: | Metal Dome FPC Membrane Switch,Push Button Metal Dome Membrane Switch,Medical Device Metal Dome Membrane Switch |
||

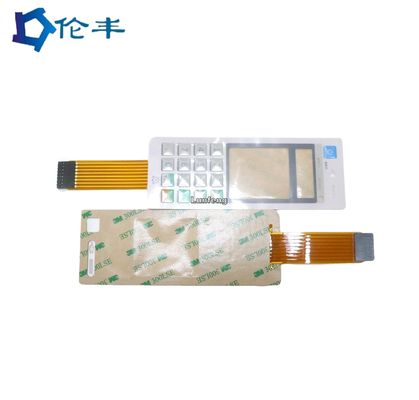

Metal Dome Push Button FPC circuit Membrane Switch for medical device
Lufneng completed thousands of unique switch designs that span the industrial, medical, instrumentation, and security markets. Membrane Switch technologies that include;
TYPES
Flat switches
Tactile switches
Switches with PCB assembly
Switches with keypad assembly
Switches mounted to metal backer (metal dome and polydome constructions)
Switches with micro motion and backlighting
Switches with rugidized options
Switches with plastic housing
Medical membrane switches
Embossed switches
Switches with rigid & flexible substrates
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
