Polyester Custom Made Button Membrane Switch with 2.54mm Connector

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFZDX005
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Polyester Custom Made One Button Membrane Switch ColorS: Pantone/ RAL Color, Gray, White, Black, Blue
Material: PET,Polyester Rear Adhesive: 3M9848
Feature: Metal Domes, Matte Surface, Silver Circuit Connector: 2.54mm Connector
Key: Embossing Keys, Matte Button Type: Led Window, LCD Window
Membrane Switch: Button Membrane Switch
High Light:

2.54mm Connector Button Membrane Switch

,

Polyester Button Membrane Switch

,

LCD window Metal Dome Membrane Switch

Polyester Custom Made Button Membrane Switch



Membrane keypads and membrane switches offer designers of electronic equipment a flexible, customizable user interface which is compact, versatile, reliable and assembly friendly.



Construction

Constructed of layers of polyester (PET) film combined with spacers and adhesive, electrically conductive inks are printed onto the film to form a circuit. Total thickness is typically 1-2mm. Depending on the application and environment, graphic overlay materials can be specified to resist harsh environments such as high moisture, high UV and chemicals. Tactile Feedback of switches can be built into the keypads by insertion of stainless steel tactile discs or embossing of the overlays. Permark can supply either Female Clinch or ZIF connectors


Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm








1. Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2. Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3. Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours




FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.


Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

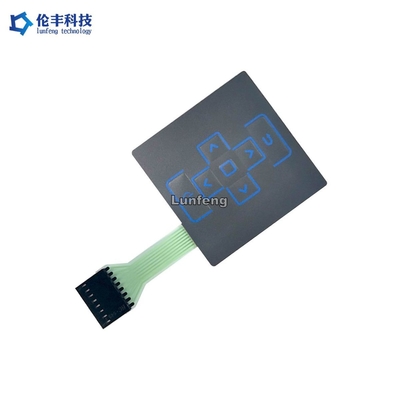

Polyester Custom Made Button Membrane Switch with 2.54mm Connector 0

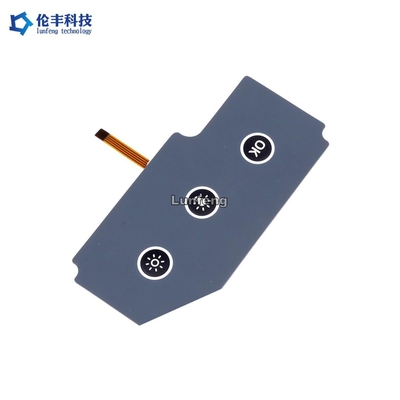

Polyester Custom Made Button Membrane Switch with 2.54mm Connector 1Polyester Custom Made Button Membrane Switch with 2.54mm Connector 2

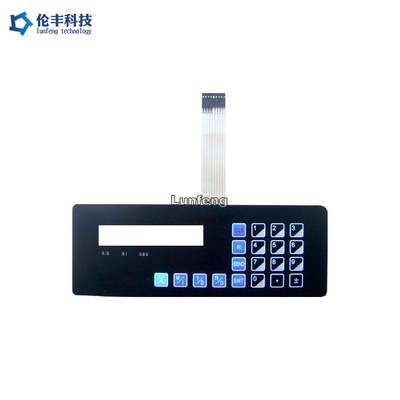

Polyester Custom Made Button Membrane Switch with 2.54mm Connector 3
