| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | Lunfeng/Customer's brand |
| Certification: | ISO9001:2015, SMETA 4P |
| Model Number: | LFZDX090 |
| Minimum Order Quantity: | 1 piece |
| Price: | depending on the design |
| Packaging Details: | PE bag/foam/carton, as customer's request |
| Delivery Time: | normally 2-4 weeks, can be discussed |
| Payment Terms: | TT/telegram transfer |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Material: | PET, Polyester(PET), Autotype F150 PET | Rear Adhesive: | 3M467 3M468 3M9448 |
|---|---|---|---|
| ColorS: | Pantone/ RAL Color, White, Black | Feature: | Matte Surface, Silver Circuit Cable |
| Connector: | 2.54 Mm Pitch, Black Plastic Connector | Key: | Embossed Keys Metal Domes, |
| LED: | NO Leds, NO LGF Film | Window: | Transparent LCD Window, Punch Holes |
| High Light: | RAL Colour Metal Dome Membrane Switch,3M9448 Metal Dome Membrane Switch,PET Tactile Switch Keypad |
||

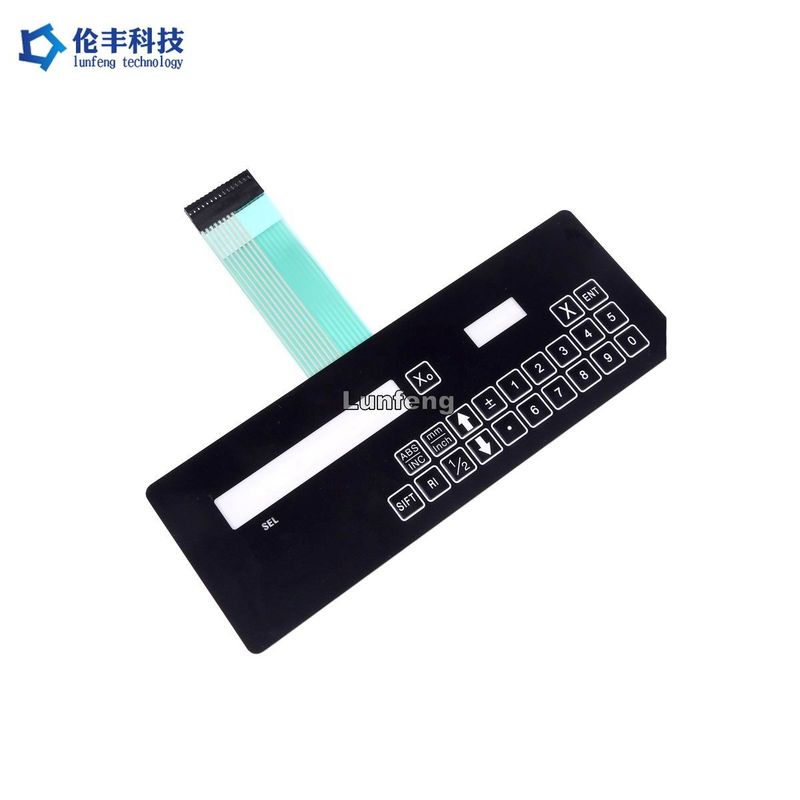

Autotype F150 PET Metal Dome Membrane Switch, Tactile Switch Keypad
The keys of the early non-tactile Membrane Switches used colors to express the position, shape and size of the key body, and the operator recognized the operation by vision. In order to facilitate the operation and improve the accuracy, the panel was later designed as a raised button frame or a raised blind spot. In recent years, many flat non-tactile membrane switches have been changed into Capacitive Membrane Switches.
Membrane switch is an operating system that integrates key functions, indicating elements and instrument panels. It consists of four parts: panel, upper circuit, isolation layer and lower circuit. When the membrane switch is pressed, the contacts of the upper circuit are deformed downward, and are in contact with the pole plate of the lower circuit. After the finger is released, the contacts of the upper circuit bounce back, the circuit is disconnected, and the circuit triggers a signal. The membrane switch has strict structure, beautiful appearance and good sealing performance.
Applications:
Our Advantage:
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
| 1. Electrical Properties | Membrane Switch | ||
| Electrical Level: | 35V(DC), 100mA,1W | ||
| Contact Resistance: | 10Ω~500 Ω | ||
| Insulation Resistance: | 100MΩ/100V | ||
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
| Chattering Time: | ≤ 5ms | ||
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
| Tail Folding: | R>1,180 | ||
| 2. Mechanical Properties | |||
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
| 3. Environmental and Storage Conditions | |||
| Operation Temperature: | -40°C ~ +80°C | ||
| Storage Temperature: | -40°C ~ +80°C | ||
| Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
