| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | GPO916 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product: | Tracker Device Graphic Panel 3.0mm PMMA Acylic Graphic Overlay With Window | Application: | 3C Electronics Display Protection, Industrial Control |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Black, Blue | Material: | Acylic |

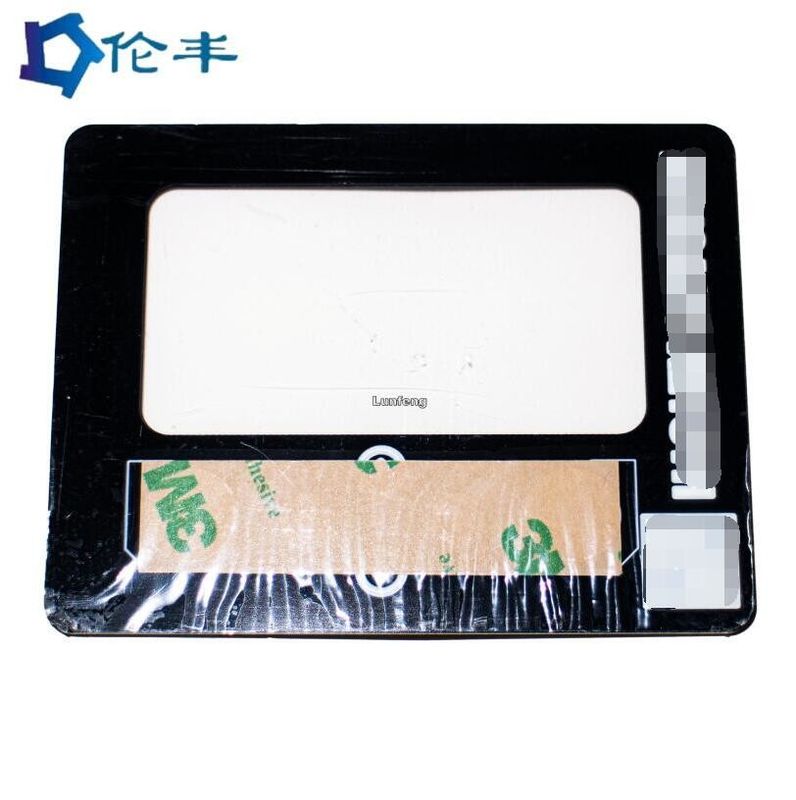

| Rear Adhesive: | 3M468 | Feature: | Transparent LCDs |
| Processing Method: | Laser Cutting | Size: | Customized Size |
| Printing: | Screen Printing /digital Printing | ||
| High Light: | 3.0mm Acrylic Graphic Panel Overlay,3M468 Adhesive Graphic Panel Overlay,3.0mm Acrylic Overlay |
||

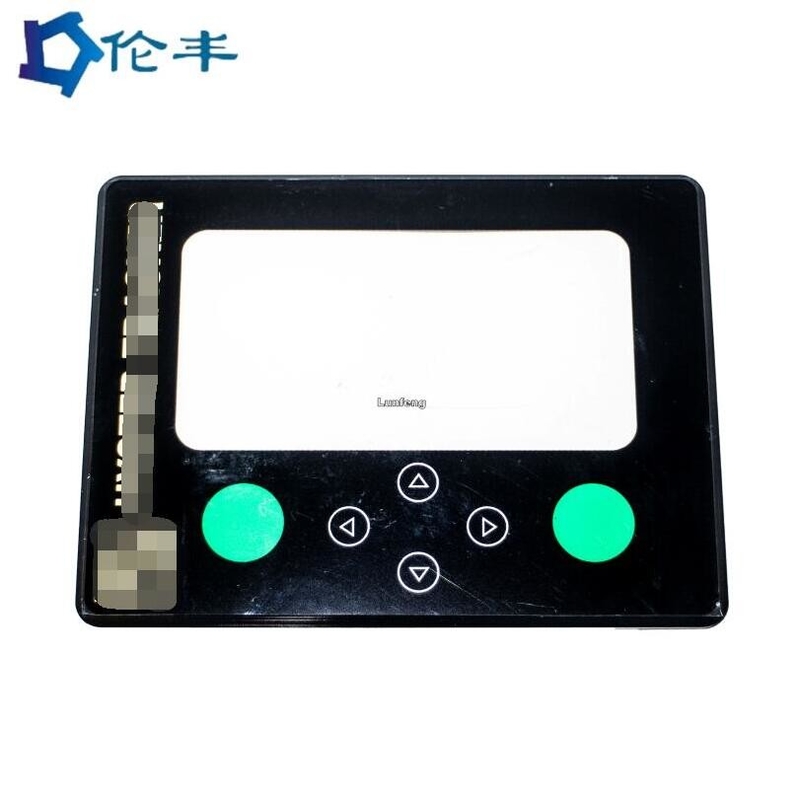

tracker device Graphic Panel 3.0mm PMMA Acylic Graphic Overlay With Window
Acrylic overlay, also known as polymethyl methacrylate overlay, is an important plastic polymer material with a PMMA backing, which has the advantages of light weight, not easy to break, better transparency, easy to shape and process, and easy to colour. Its widely used in Architecture, advertising, transport, medicine, lighting industrials.
Custom die cut screen printing anti-scratch LCD PMMA acrylic front graphic panel overlay application:
Membrane keypad panels, Warning / Safety Labels, Graphic Facias, Retail Swing Tags, Brand Identification / Signage, Instruction front panels for instrument and devices.
Strength:
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Description |
Technical capabilities |
| Available Material |
PMMA, PC, PVC, PET, ABS, PP, etc.
|
| Standard thickness |
PMMA: 0.5-10.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
PC: 0.125—6.0mm (matt, anti-glare, anti scratch, anti-UV)
|
|
| Max printing size |
1300x700 mm
|
| Max cut size |
2500x1000mm
|
| Color |
As requested
|
| Double side adhesive |
3M93010, 3M93020, 3M9080, VHB4920,etc.
|
| Operating temperature |
PC: -40°C- 90°C PMMA: -40°C- 80°C
|
| Finish |
anti-glare surface, anti-fog surface, anti-fingerprint surface, gloosy surface, frosted surface
|
| Printing |
Silk-screen printing
|
| Molding method |
By CNC cutting, without tooling
|
| Advantage |
Glossy surface, colorful printing appearance, good texture, safety and eco-friendly
|
| OEM services |
Silk screen printing, custom die cutting/CNC cutting
|
| Shipping method |
DHL, TNT, Fedex, UPS, ShunFeng etc.
|
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q : How to make an ORDER and QUOTATION?
A: It is better to provide us the design drawing or samples, we’ll quote and customize the membrane switch/ graphic overlay upon your requests.
(1) Drawings, photos, requirement, quantity
(2) Overlay Dimension:
Material: PET/ PC
Finish:Matte/ Glossy
Adhesive:3M467/ 3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/ NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: Yes/ None
Q : Can you do the design for us?
A : Yes, no problem
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.
Q : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q : What is the production time?
A : The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.
Q : What payment do you accept ?
A : TT/ Western Union.
Q : What about the sample policy, For FREE?
A : (1) Free Samples: Free sample (stock products) can be provided if the customer can pay for the freight.
(2) Custom Samples: The quotation can be provided if you can send us drawings/ requirements/ quantity.
Q : .How to control quality?
A : (1) We process the products strictly based on the raw material list.
(2) Our many engineer own many years experience and are very responsible.
(3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.
Q : How to guarantee the after sales service?
A : We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
Q : What's your main market?
A : Europe, USA, Canada, Russia, Turkey, Iran, Austrialia, Singapore...
Q : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
