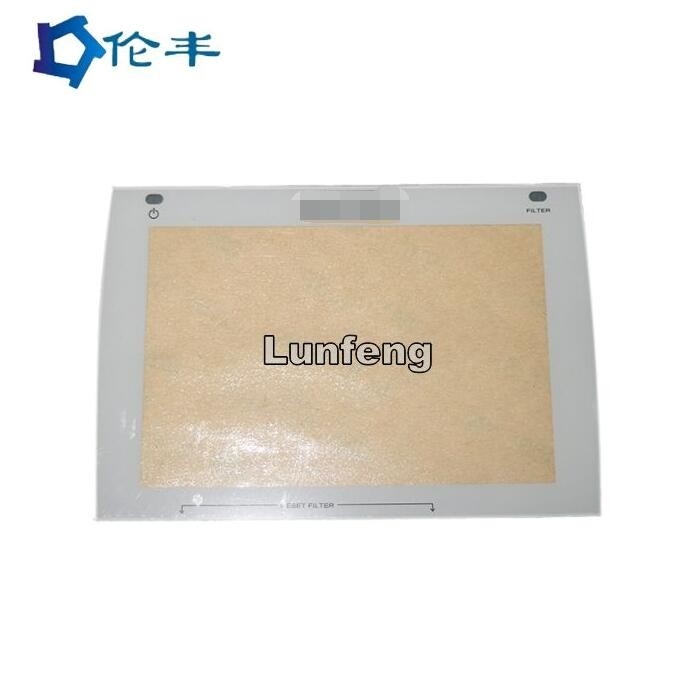

OEM 1.0mm Acrylic Faceplate / Acrylic Front Panel With 3M Adhesive

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: GPO763
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: OEM 1.0mm PMMA Faceplate Acrylic Front Panel Graphic Overlay With 3M Adhesive Usage: PMMA Faceplate
Colors: Pantone/ RAL Color, Gray, Black Material: Acylic 1.0mm
Rear Adhesive: 3M468, 9495 Feature: Transparent LCDs Window
Processing Method: Laser Cutting, CNC Cutting Size: Customized Size
Printing: Screen Printing /digital Printing
High Light:

1.0mm Acrylic Faceplate

,

OEM Acrylic Faceplate

,

Acrylic Front Panel With 3M Adhesive

OEM 1.0mm PMMA faceplate Acrylic front panel graphic overlay with 3M adhesive





Acrylic overlay, also known as polymethyl methacrylate overlay, is an important plastic polymer material with a PMMA backing, which has the advantages of light weight, not easy to break, better transparency, easy to shape and process, and easy to colour. Its widely used in Architecture, advertising, transport, medicine, lighting industrials.



Custom die cut screen printing anti-scratch LCD PMMA acrylic front graphic panel overlay application:

Membrane keypad panels, Warning / Safety Labels, Graphic Facias, Retail Swing Tags, Brand Identification / Signage, Instruction front panels for instrument and devices.




PMMA front panels
Customized design silkscreen printing
Precise CNC cutting as requested sizes and shapes
Durable acrylic PMMA material with different thickness
High-temperature resistance and excellent dimensional stability
Wide applications used in many different industries and applications
PMMA front panels


Products materials:Acrylic(PMMA)plexiglass
Thickness(mm):0.50mm, 0.80mm,1.0mm,1.50mm, 2.0mm etc
Picture and color:We can customize any picture and color you want,usually you need to provide Pantone color code or RAL color code
Shape processing method: CNC cutting with punching, various Through-hole, hole, step, C angle, R angle as drawing file within measures tolerances







Strength:




Our Advantage:

We Focus in membrane switch and related items.


Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system



Description

Technical capabilities

Available Material



 PMMA, PC, PVC, PET, ABS, PP, etc.



Standard thickness

 PMMA: 0.5-10.0mm (matt, anti-glare, anti scratch, anti-UV)



 PC: 0.125—6.0mm (matt, anti-glare, anti scratch, anti-UV)



Max printing size

 1300x700 mm



Max cut size

 2500x1000mm



Color

 As requested



Double side adhesive

 3M93010, 3M93020, 3M9080, VHB4920,etc.



Operating temperature

 PC: -40°C- 90°C PMMA: -40°C- 80°C



Finish

 anti-glare surface, anti-fog surface, anti-fingerprint surface,

 gloosy surface, frosted surface



Printing

 Silk-screen printing



Molding method

 By CNC cutting, without tooling



Advantage

 Glossy surface, colorful printing appearance,

 good texture, safety and eco-friendly



OEM services

 Silk screen printing, custom die cutting/CNC cutting



Shipping method

 DHL, TNT, Fedex, UPS, ShunFeng etc.









1. Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2. Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3. Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours




FAQ:

Q: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.


Q : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.



Q : How to make an ORDER and QUOTATION?

A: It is better to provide us the design drawing or samples, we’ll quote and customize the membrane switch/ graphic overlay upon your requests.

(1) Drawings, photos, requirement, quantity
(2) Overlay Dimension:
Material: PET/ PC
Finish:Matte/ Glossy
Adhesive:3M467/ 3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/ NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: Yes/ None



Q : Can you do the design for us?
A : Yes, no problem
There ate many professional engineer having rich experience in graphic overlays& circuit designing.
Just let us know your ideas and we will help to carry out your ideas into perfect products.
If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.





Q : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.


Q : What is the production time?
A : The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.



Q : What payment do you accept ?
A : TT/ Western Union.





Q : What about the sample policy, For FREE?
A : (1) Free Samples: Free sample (stock products) can be provided if the customer can pay for the freight.

(2) Custom Samples: The quotation can be provided if you can send us drawings/ requirements/ quantity.




Q : .How to control quality?
A : (1) We process the products strictly based on the raw material list.
(2) Our many engineer own many years experience and are very responsible.
(3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.



Q : How to guarantee the after sales service?
A : We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.



Q : What's your main market?
A : Europe, USA, Canada, Russia, Turkey, Iran, Austrialia, Singapore...



Q : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
