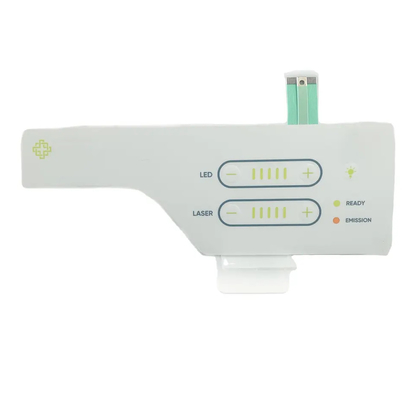

Tape & Reel Tactile Metal Dome Switch Customized -30°C To +80°C

Basic Information
Place of Origin: China
Brand Name: Lunfeng
Certification: ISO9001:2015
Product Name: Metal Dome Membrane Switch Operating Temperature: -20°C To +70°C
Waterproof: IP67 Contact Rating: 50mA/50V DC
Color: Customized Size: Customized
Application: Industrial, Automotive, Medical, Home Appliance, Etc. Type: Metal Dome
High Light:

Reel Tactile Metal Dome Switch


50V DC Reel Tactile Dome Switch


IP67 Reel Tactile Dome Switch

Product Description:

Membrane Keyboard is an electrically operated system with great advantages, such as good water resistance, smooth overall, small quality, thin appearance, and good dust-proof. It also has a semi-closed structure, is widely used in desktop computers, copiers, fax machines, toys, square computers, word processors and other fields. A further bonus is the design of the faceplates, this gives users a vast amount of freedom in terms of color choice.

The construction of the Membrane Switch consists of four parts: the panel, the upper circuit, the insulation layer, and the lower circuit. When a switch is pressed, the contact of the upper circuit is pushed downward into contact with the lower circuit, when the finger is removed the contacts of the upper circuit resume their original position; thereby cutting off the power supply and sending a signal.

The membrane switch we produce is of strict structure and good appearance and it offers superb sealing performance. As a Membrane Switches manufacturer, we are experienced in Graphic Overlay, Membrane Panels, Soft Circuits, Silicone Rubber Keyboard, LED, and LGF Silicone Rubber Keypad customization, inquiry is welcome.



  • Product Name: Metal Dome Membrane Switch
  • Lead Time: 7-15 Days
  • Storage Temperature: -30°C To +80°C
  • Features:
    • Matte Surface
    • FPC Circuit Cable
    • Tactile Metal Dome Switch
    • Membrane Switch Pad
  • Waterproof: IP67
  • Contact Rating: 50mA/50V DC

Technical Parameters:

Property Value
Contact Rating 50mA/50V DC
Product Name Metal Dome Membrane Switch
Material Polyester
Waterproof IP67
Circuit Single/Double/Multi-layer
Life Cycle 1 Million Cycles
Color Customized
Size Customized
Feature Matte Surface, FPC Circuit Cable
Application Industrial, Automotive, Medical, Home Appliance, Etc.
Keywords Tactile Metal Dome Switch, Metal Dome Tactile Switch, Membrane Switch Pad


The Lunfeng Metal Dome Membrane Switch is a superior tactile membrane keypad, designed for applications in a wide range of industries. It features matte surface, FPC circuit cable, 1.0mm pitch, and black connector. With its ISO9001:2015 certification, this switch is waterproof up to IP67 and packaged in bulk, tray, tape, and reel for convenience. This reliable and durable Metal Dome Membrane Switch is an ideal choice for applications in the automotive, medical, home appliance, and industrial markets.


Support and Services:

We provide technical support and services for Metal Dome Membrane Switch products. Our team of experienced engineers and technicians can provide you with the best advice, troubleshooting and support for your Metal Dome Membrane Switch products.

We offer a range of services including product installation, maintenance, repair and modification. Our team is equipped with the latest tools and technologies to provide you with the most comprehensive and up-to-date solutions for your needs. We also provide technical documentation and training on a variety of topics related to Metal Dome Membrane Switch products.

We are dedicated to providing you with the highest levels of customer service and satisfaction. Our team is available 24/7 to assist you with any technical issues or questions you may have. We are committed to providing you with the best solutions for your Metal Dome Membrane Switch products.


Packing and Shipping:

Metal Dome Membrane Switch packaging and shipping should be done properly to ensure the safety of the product. The product should be packaged in a sturdy box with bubble wrap or other cushioning material. It is best to avoid any kind of liquid contact with the product. Additionally, all shipping labels should be clearly marked with the correct shipping address and the address of the recipient.
