| Product Name: | Metal Dome Membrane Switch Tactile Push Button With Led Backlight | Used On: | Industrial Equipment |
|---|---|---|---|
| ColorS: | Pantone RAL Color, Yellow, Blue, Green, Gray | Material: | Matte |
| Rear Adhesive: | 3M468 | Feature: | Metal Domes, Matte Surface, Cut-out, Leds |
| Connector: | 2.54mm Female Connector | Key: | Key Embossing |
| Printing: | Silkscreen Printing And 3D Digital Printing | Type: | Backlit/backlight/illuminated |
| Style: | Matrix Keypad | Membrane Switch: | Tactile Membrane Switch |
| High Light: | metal dome push button membrane switch,led backlight push button membrane switch,3M468 metal tactile switch |
||

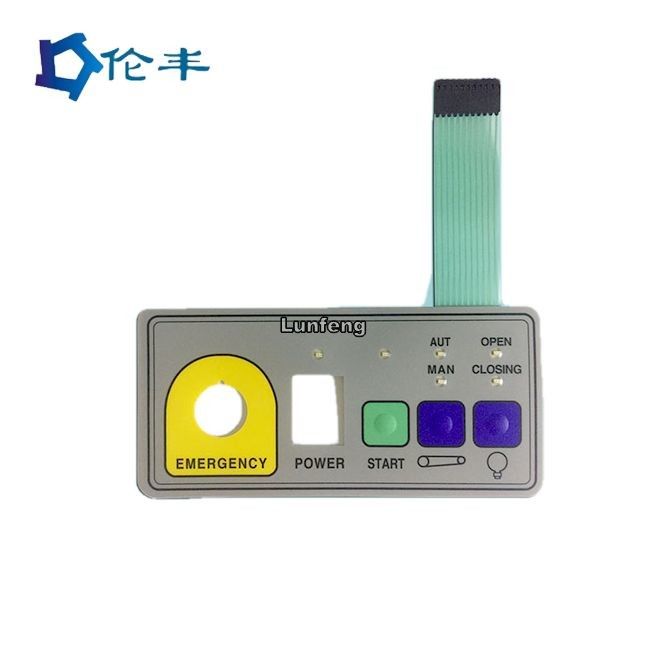

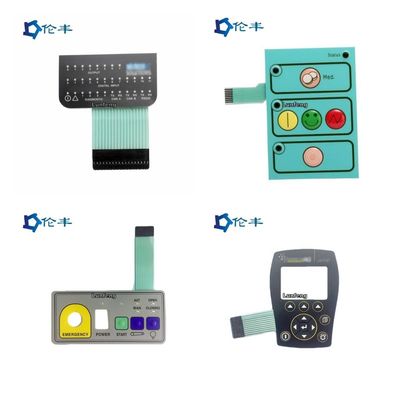

metal dome membrane switch tactile push button with led backlight
One-stop solutions for what you expect are below:
1. Highly illuminated graphic overlay with silk screen/ off-set / gradient / digital printing
2. Membrane swith keypad with integrated metal domes, SMT LEDs, capacitors, resistors,diodes etc.
3. ESD production, IP67 and Chemical / UV/ scratch resistant to provide long life cycle in harsh environment
4. PCB/ FPC/RUBBER/ FFC Assemblies with reflowing and ultrasonic soldering
5. Latest LGF/LED/EL backlight
6. flat type, embossed type, metal dome, polydome with good tactile feedback
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
