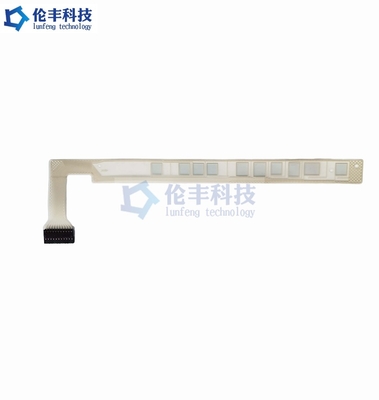

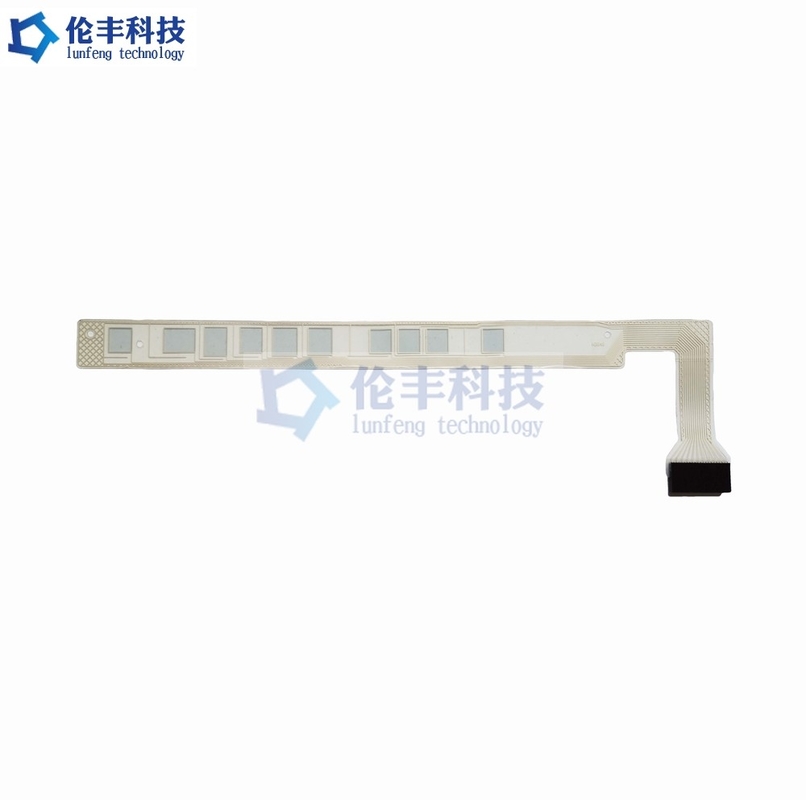

Polyester Dome Membrane Switch

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: CTMS894023024
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: Flat Capacitive Touch Membrane Switch Silkscreen Printing Circuit In Shenzhen Application: Medical Equipment, Electronic Equipment, Home Appliance/Telecommunication Equipment...
Keypad Button Material: Rubber, PET, Metal, Polyester, PET/PC/PMMA/PE/PVC Color: Pantone And RAL
Material: PET PC PVC, Polyester, Polycarbonate, PET/PC/PVC, SUS304 Rear Adhesive: 3M467, 3M468, 3M9448, 3M9080...
Printing: Screen Printing Size: Customized Size
Membrane Switch: OEM Membrane Switch Certification: ISO9001: 2015
High Light:

polyester dome membrane switch

,

Silkscreen Printing dome membrane switch

,

Flat capacitive touch switch

Product name:

Flat Capacitive Touch Membrane Switch Silkscreen Printing Circuit In Shenzhen
Polyester Dome Membrane Switch Silkscreen Printing Flat Capacitive Touch Switch

Specification

> Graphic overlay:   PET /PC

> Rear adhesive:  transparent adhesive / 3M467/ 3M468/ 3M9495 /3M9080 ...



> Certification: ISO9001:2015 /ROHS/SG

> Payment terms: T/T, West Union

> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified

> Delivery time: 7~25 Working Days


1.Electrical Properties
Membrane Switch
Electrical Level:
35V(DC), 100mA,1W
Contact Resistance:
10Ω~500 Ω
Insulation Resistance:
100MΩ/100V
Dielectrics Voltage-resistance:
250VRms(50~60Hz 1min)
Chattering Time:
≤ 5ms
Life Time:
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:
R>1,180


2.Mechanical Properties

Operating Force:
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm


3.Environmental and Storage Conditions

Operation Temperature:
-40°C ~ +80°C
Storage Temperature:
-40°C ~ +80°C
Humidity:
40°C, 90%~95%, 240 hours



Polyester Dome Membrane Switch 0Polyester Dome Membrane Switch 1

Polyester Dome Membrane Switch 2
