| Product Name: | Capacitive Membrane Keypad With 3M467 Adhesive Tactile Dome Button | Used On: | Various Industry Control Keypad Panel, Consumer Electronics And 3C Item |
|---|---|---|---|
| Colors: | Pantone/ RAL Color | Material: | PET |
| Rear Adhesive: | 3M467 | Feature: | PET Circuit, Metal Dome |
| Switch Type: | Capacitive Membrane Overlay | Size: | Customized Size, Round |
| High Light: | round Capacitive Membrane Keypad,PET circuit Capacitive Membrane Keypad,3M467 Adhesive tactile dome button |
||

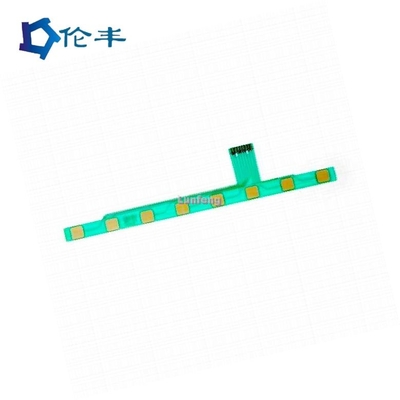

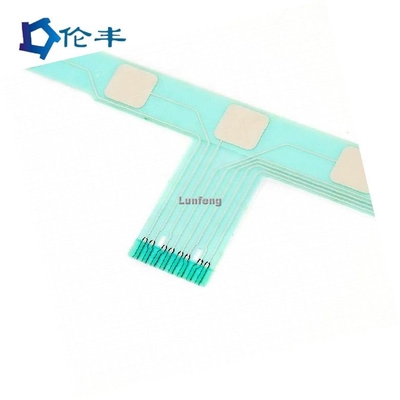

Capacitive Membrane Keypad With 3M467 Adhesive tactile dome button
Capacitive Membrane Keypad feature-Economic benefit
Switch production is made at one time according to the final membrane switch design. The connection of the switch group and the lead-out of the switch circuit have been screen printed at one time by special printing methods. In terms of the cost of switch processing, the cost is lower than that of discrete parts especially for large-scale manufacture. In terms of the overall cost of the user, it also has these economic advantages.
Firstly, there is no need of punching and fixing, which greatly reduces the assembly process. Secondly, the connection of the switch group does not need to be welded one by one. It can not only save time but also avoid the hidden trouble caused by welding quality. Thirdly, there is no need to configure the panel, dig holes and open windows on the display part of machine interfaces. At the same time, due to the innovative structure and strong sense of the times, it can improve the credibility and market competitiveness of products. of course, the added value generated is still obvious.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
