| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | MDMS-716 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product: | Metal Dome Membrane Switch Digital Overlay Printing Silkscreen Printing | Application: | Control System |
|---|---|---|---|
| Color: | Pantone And RAL | Material: | PET |
| Rear Adhesive: | 3M468 | Keypad Button Material: | PET/PC/PMMA/PE/PVC |
| Printing: | Screen Printing, Black, White | Size: | Rectangle Shape, Customized Size |
| Connector: | Without Connector | Surface Finish: | Glossy |
| High Light: | PET Metal Dome Membrane Switch,3M468 Metal Dome Membrane Switch,PVC membrane switch keyboard |
||

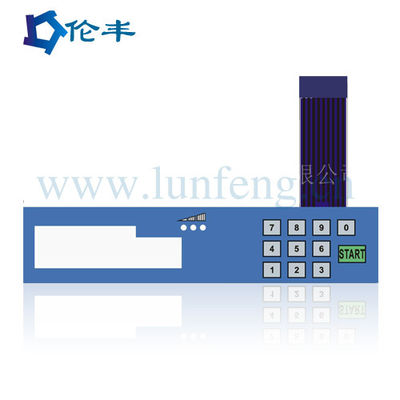

Metal Dome Membrane Switch digital overlay printing silkscreen printing
Specification
> Graphic overlay: glossy PET
> Rear adhesive: 3M 467
> feature: with tatile dome
> color: Screen Printing, Black, white
> connector: without connector, ZIF
> Certification: ISO9001:2015 /ROHS/SG
> Payment terms: T/T,West Union
> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified
> Delivery time: 7~25 Working Days or To be negotiated
Metal dome function
1. With the help of metal conductivity, the two-pole contacts of the switch are turned on
2. With the rebound of the shrapnel, provide tactile feedback to the operator
3.Available specifications are 8.4, 10, 12, 14, 16mm.Generally, the size of 10-12mm shrapnel is recommended
Applications:
* Medical equipment *Telecommunications apparatus * Military industries
* Household appliances
* Security systems
* Industrial controls
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
