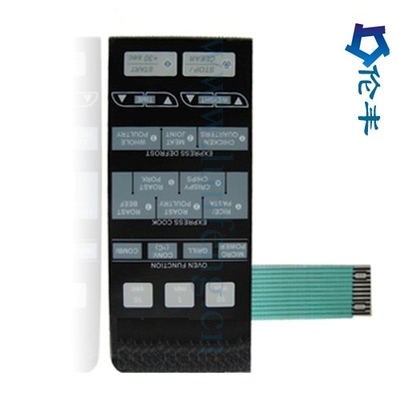

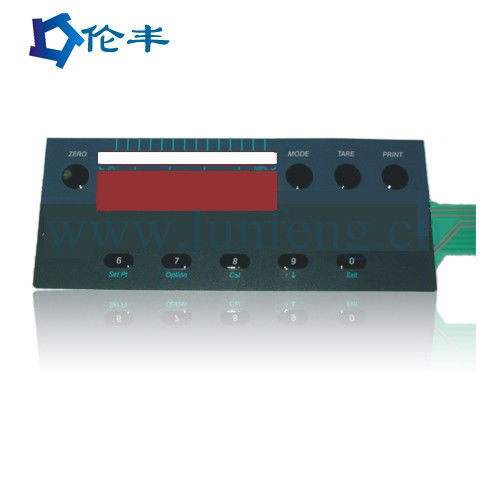

LED Metal Dome Membrane Switch

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-718
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: Metal Dome Membrane Switch With Flexible Circuit And Connector Application: Medical/Industrial/Household Equipment
Material: PET PC PVC Name: Membrane Keypad Switch
Size: Customized Size Printing: Screen Printing,Digital Printing
Rear Adhesive: 3M468,3M467/468 Membrane Switch: OEM Membrane Switch
High Light:

LED Metal Dome Membrane Switch


circuit connector Metal Dome Membrane Switch


3M 468 metal dome tactile switch

Metal Dome Membrane Switch with flexible circuit and connector



What Special Features Can Be Incorporated into Membrane Switches?
Tactile Feedback
Membrane switches can be manufactured with non-tactile switches, which activate with 4 – 8 oz of touch pressure. Non-tactile switches are less expensive and provide the longest switch life. Tactile switches have a snap-action feel and may also be incorporated into a membrane switch, enhancing tactile feedback, but with a greater cost and lower switch life.
Lighting Options
There are three standard methods for illuminating membrane switches.
Light Emitting Diodes (LEDs) are a popular, low-cost, point-source lighting method to back light membrane switches. LED’s emit very little heat, and come in a variety of colors, lamp packages, and intensity levels. LED’s are used as indicator lights and are not designed for overall back lighting of a panel.
A second option is optical fibers. Fiber optic lamps are an effective method to achieve more uniform back lighting across a broader area of the membrane switch keypad. With fiber optic back lighting, light from a light source, normally an LED, is evenly distributed under the graphics by use of very thin plastic fibers. Optical fibers are not affected by extremes in humidity (0% to 100%) or temperature (-40 to +85 deg C).
The third option is electroluminescent (EL) lamps. They are lower priced compared to optical fibers and offer additional design flexibility. EL lamps are best suited for applications where the back light is a minimum requirement, because the phosphors tend to decay with extended use at high voltages and frequencies. Thus EL lamps are not a good choice if the lamp is on for an extended period of time.

> Graphic overlay: glossy 0.188 PET
> Rear adhesive: 3M 468


> feature: with tatile dome diameter-8


> color: Screen Printing, Black, GRAY


> connector: without connector, ZIF






* Medical equipment *Telecommunications apparatus * Military industries

* Household appliances

* Security systems

* Industrial controls


Our Services

Ensure our goods are the customer's exact requirement, we do follows:

Proof --Factory's proof will be sent to customer for confirming before doing sample.

Sample- We provide customer 5-10pcs prototype to testing in 7-10days after order.

Quantity order-- Customer confirmed the prototype, we start to working strictly according to prototype.

Quality problem--Customer don't satisfied with our quality due to factory's carelessness, return goods to us, we will make the replacement for you quickly.


1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:


Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:




2.Mechanical Properties


Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



3.Environmental and Storage Conditions


Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C


40°C, 90%~95%, 240 hours





Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...




LED Metal Dome Membrane Switch 0

LED Metal Dome Membrane Switch 1

LED Metal Dome Membrane Switch 2
