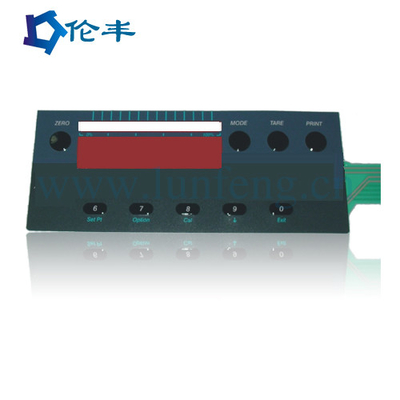

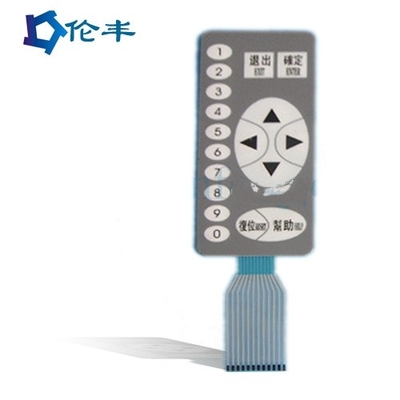

Flex Tail Tactile Switch Keypad Control System PMMA PE PVC Membrane Switch Pad

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: Lunfeng/Customer's brand
Certification: ISO9001:2015, SMETA 4P
Model Number: MDMS-720
Minimum Order Quantity: 1 piece
Price: depending on the design
Packaging Details: PE bag/foam/carton, as customer's request
Delivery Time: normally 2-4 weeks, can be discussed
Payment Terms: TT/telegram transfer
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Metal Dome Membrane Switch With Flex Tail For Control System Used On: Control System
Color: Pantone And RAL Material: PET
Rear Adhesive: 3M468 Keypad Button Material: PET/PC/PMMA/PE/PVC
Printing: Screen Printing, Black, Gray Size: Rectangle Shape, Customized Size
Connector: ZIF Without Connector Cable: Custom Cable Length
High Light:

PMMA tactile switch keypad

,

flex tail tactile switch keypad

,

PE PVC membrane switch pad

Metal Dome Membrane Switch with flex tail for control system




Specification

> Graphic overlay: glossy PET

> Rear adhesive: 3M 468



> feature: with tatile dome diameter-8



> color: Screen Printing, black, gray



> connector: ZIF without connector







> Certification: ISO9001:2015 /ROHS/SG


> Payment terms: T/T,West Union


> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified


> Delivery time: 7~25 Working Days or To be negotiated






Applications:

* Medical equipment *Telecommunications apparatus * Military industries

* Household appliances

* Security systems

* Industrial controls




Our Services

Ensure our goods are the customer's exact requirement, we do follows:

Proof --Factory's proof will be sent to customer for confirming before doing sample.

Sample- We provide customer 5-10pcs prototype to testing in 7-10days after order.

Quantity order-- Customer confirmed the prototype, we start to working strictly according to prototype.

Quality problem--Customer don't satisfied with our quality due to factory's carelessness, return goods to us, we will make the replacement for you quickly.



Dielectric withstand voltage: no breakdown or flashover after 250V RMS (50-60Hz 1min) test

Contact jitter time: ≤5ms

Service life: plane type ≥5 million times

Touch type: ≥1 million times

Operating pressure: plane type 57~ 284g (2 ~ 10oz)

Tactile type: 170-397g (6-14oz)

Switch stroke: plane type 0.1~ 0.5mm

Feature: Durable



1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours






FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...



Flex Tail Tactile Switch Keypad Control System PMMA PE PVC Membrane Switch Pad 0







Flex Tail Tactile Switch Keypad Control System PMMA PE PVC Membrane Switch Pad 1









Flex Tail Tactile Switch Keypad Control System PMMA PE PVC Membrane Switch Pad 2

About US:

Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).

In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.

Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.

We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!

Welcome to contact us !



-------------------------------------------------------------------------------------------------------

Shenzhen Lunfeng Techonology Co., Ltd
