3M Metal Dome Membrane Switch Keypad Embossed Tactile Button PET PC PVC

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-722
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product NAME: Customized Design Mtal Dome Membrane Keypad Embossed Tactile Button With LCD Used On: Industrial Control
Color: Pantone And RAL Material: PET PC PVC
Rear Adhesive: 3M9448 Keypad Button Material: PET/PC/PMMA/PE/PVC
Printing: Screen Printing, Yellow, Green Size: Rectangle Shape, Customized Size
Connector: ZIF Cable: Custom Cable Length
Surface Finish: Glossy Or Matte
High Light:

LCD Metal Dome Membrane Switch


3M Metal Dome Membrane Switch


PET PC PVC metal dome membrane keypad

Customized design mtal dome membrane keypad Embossed tactile button with LCD


> Graphic overlay: matte PET
> Rear adhesive: 3M 9448


> feature: with tatile dome diameter


> color:  Screen Printing, yellow, green


> connector: ZIF without connector




> Certification: ISO9001:2015 /ROHS/SG

> Payment terms: T/T,West Union

> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified

> Delivery time: 7~25 Working Days or To be negotiated



* Medical equipment *Telecommunications apparatus * Military industries

* Household appliances

* Security systems

* Industrial controls


Our Services

Ensure our goods are the customer's exact requirement, we do follows:

Proof --Factory's proof will be sent to customer for confirming before doing sample.

Sample- We provide customer 5-10pcs prototype to testing in 7-10days after order.

Quantity order-- Customer confirmed the prototype, we start to working strictly according to prototype.

Quality problem--Customer don't satisfied with our quality due to factory's carelessness, return goods to us, we will make the replacement for you quickly.



How to control quality?

(1) We process the products strictly based on the raw material list.
(2) Our many engineer own many years experience and are very responsible.
(3) Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.


Back Panels

1. The most commonly used material for back panels is aluminum, which can be supplied with a variety of mounting hardware installed.


2. Other back panel materials include stainless steel, acrylic, polycarbonate, and ABS.

Panels Design Considerations

To ensure that the subpanel is not visible after assembly:

1. It should be .020″ smaller than the membrane switch layers in both height and width;

2. all cutouts and holes should be .030″ larger;

3. cutouts behind windows should be .060″ larger than the window.


1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:


Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:




2.Mechanical Properties


Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm



3.Environmental and Storage Conditions


Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C


40°C, 90%~95%, 240 hours





Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

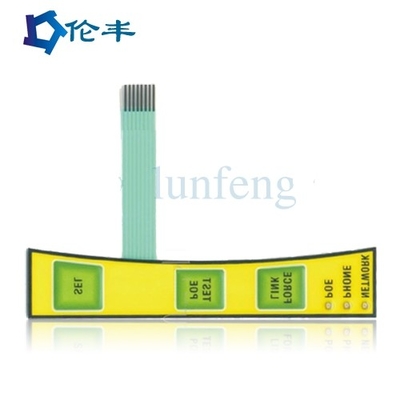

3M Metal Dome Membrane Switch Keypad Embossed Tactile Button PET PC PVC 0

3M Metal Dome Membrane Switch Keypad Embossed Tactile Button PET PC PVC 1


3M Metal Dome Membrane Switch Keypad Embossed Tactile Button PET PC PVC 2
