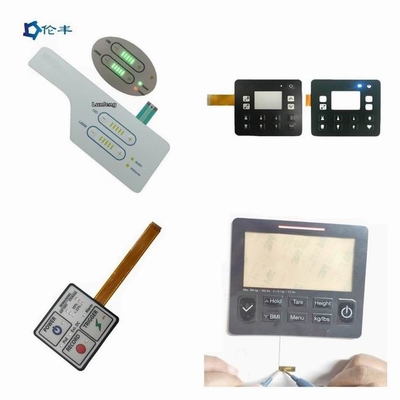

| Product Name: | Embossing Back Light Membrane Switch With 3M 468 Adhesive And LFG | Used On: | Home Appliances And Device |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Blue, Yellow, Black, Gray | Key Material: | PET Matte F150 |
| Rear Adhesive: | 3M468 | Feature: | Metal Domes, Blue And Yellow LEDs |
| Size: | Custom Size | ||
| High Light: | 3M468 Adhesive embossing membrane switch,LFG embossing membrane switch,Backlight membrane switch pad |
||
Embossing Back Light Membrane Switch With 3M 468 Adhesive and LFG

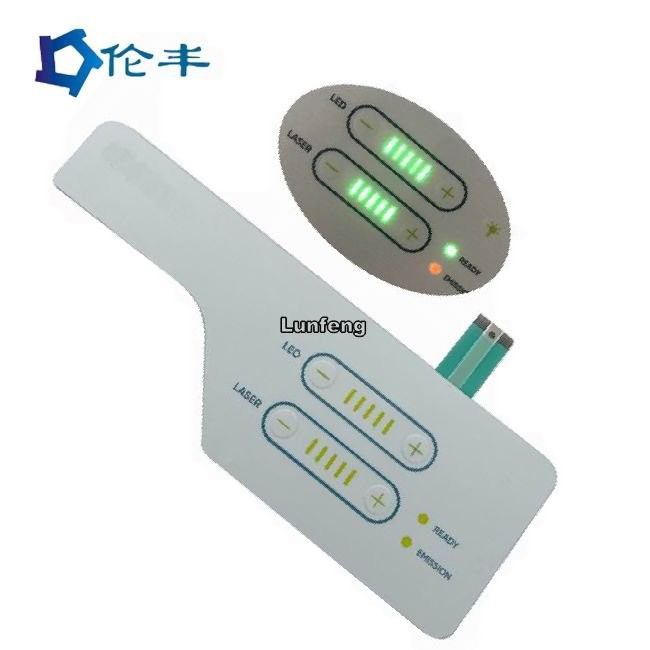

Backlit Membrane Switch
Many working environments and machines will be used in low light or dark conditions. So we will recommend illuminated membrane switches with internal lighting for backlighting in film. Choose EL film as the light guide plate, fiber optics, and the newer light guide film (LGF) structure. Niceone-tech recommends LGF, which uses side LEDs and light guide panels to make the product have a lower loss and longer life relative to the EL membrane switch.
LGF Membrane Switch: The LGF Technology
LGF stands for Light Guide Film that is responsible for directing light generated via right-angle LEDs or side-firing across areas where you need the backlit. It is basically a thin film backlighting technology that industries across the world have been using for backlit purposes.
The great thing about LGF technology is that it provides consistent backlighting regardless of the area shape. It also offers uniform lighting across multiple areas within the switch. It is possible to use multiple LG films within a certain application in order to offer discrete backlighting to different graphic features.
In order to achieve unique lighting effects, you can use different colored LEDs. On the overlay, you can associate different lighting colors with different printed graphics.
Advantages of LGF Lighting
LGF lights are available in almost any shape. Their versatility and flexibility make them the top choice for backlit switches.
LGF membrane switch is very useful for compact and thin devices.
It ensures minimal to almost no impact on the tactility of the switch buttons of the membrane.
With LGF switch, you can enjoy uniform lighting across one or more areas within a switch.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
