|Product Name:||Low Moq LEDs Back Light Membrane Switch Transparent Black Window||ColorS:||Pantone/ RAL Color, White, Black, Red, Green|
|Material:||PET, Polyester(PET), EBG180 0.18mm PET||Rear Adhesive:||3M Adhesive 3M467 3M468|
|Feature:||Metal Domes, Matte Surface, Silver Circuit||Connector:||2.54mm Pitch Black Housing Connector|
|Key:||Embossed Keys, Embossing Buttons||Type:||Color Leds, With Transparent Black LCD Window|
3M Adhesive Backlight Membrane Switch,
0.18mm PET Backlight Membrane Switch,
EBG180 LED Membrane Switch

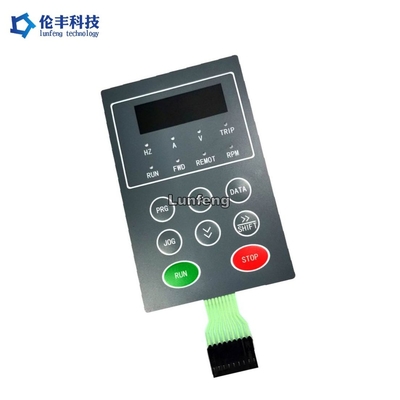

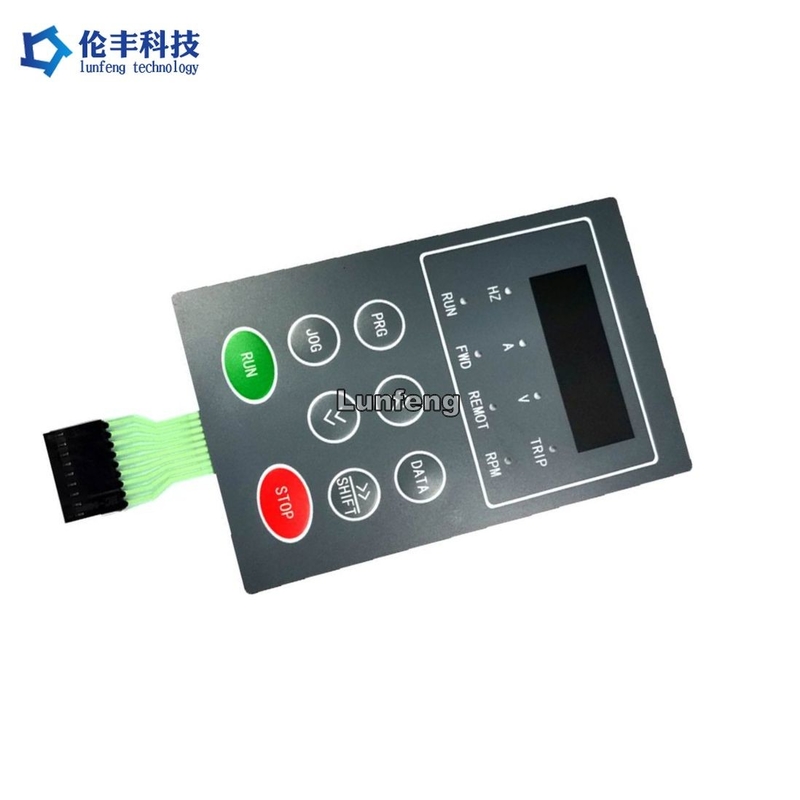

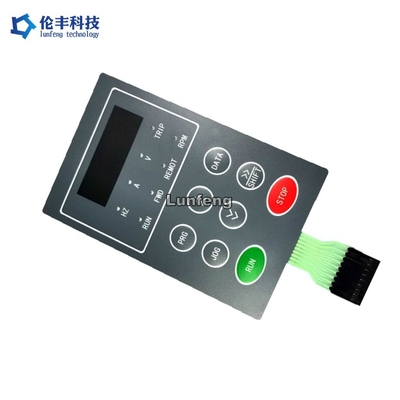

Low Moq LEDs Back Light Membrane Switch Transparent Black Window
1 customize design different size and shape
2 color Matched by Pantone matching system or RAL matching system or CMYK
3 LED mounted for good backlight
4 Good tactile Button or flat
5 Polyester or Polycarbonate material or others supply
6 PET or FFC circuit design
7 ZIF or female connector design
Key Specifications/Special Features:
LEDs welded on the flexible circuit layer make into the membrane switch. When several LEDs are assembled in the keypad, the LEDs should using 0805(0603) and the wiring of LED should be separated from lower circuit. Besides, the LED windows should be embossed. All of these details are making the construction stable. Using F200 matte PET makes the overlay looks graceful. The LED keypad are widely used as industrial control keypad, because of good tactile buttons, powerful functions. The membrane switch can be customized based on customer's design such as button icons, colors etc. The main characters are printed wiring, low resistance and function well. The item with strong function is able to weld with colorful LEDs, adopting waterproof circle structure with strong adhesive. So all buttons are suitable for high air humidity environment.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
