I2C GG Capacitive Touch Panel 42 Inch Android Usb Touchscreen

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: CTP005
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: 42 Inch Capacitive Touch Panel, Usb Capacitive Touch Screen Panel Application: For Industrial
Sizes: Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch Structure: GG
Interface: I2C, USB Size: 42"
Additional Options: Silk Screening Optical: Anti-Glare
High Light:

I2C Capacitive Touch Panel


GG Capacitive Touch Panel


42 inch android usb touchscreen

42 inch capacitive touch panel, usb capacitive touch screen panel

What is capacitive touch and what can it be used for


In many cases, machines, home appliances and electronic devices have to be controlled by human beings. It is part of everyone’s daily life and we are familiar with switches, push buttons, keyboards, knobs and slider controls. Since some time, a new species of control elements invades our life. It started in consumer products like mobile phones and MP3 players but moves into all kind of devices now. Those talks are about touch sensors. Simple electrodes underneath the housing replace Fujitsu Microelectronics Europe GmbH Page 3/12 mechanical input devices with moving elements. The shape and layout of these sensor electrodes can be designed in a very flexible way, leading to appealing, modern product designs with enhanced usability. A wide range of elements can be implemented with touch sensor electrodes: simple buttons and keyboards, linear or circular sliders, transparent touch elements on displays or even buttons on wooden surfaces. As the sensor electrodes are placed inside the device, no openings are required. The housing is more robust and cost-effective and ideally suited for rough environments where dust and moisture could creep into the device. Especially for medical applications or devices used in clean environments like in the food industry, capacitive touch control enables hygienic casings. Conventional


1. Light industrial
2. Home appliances

3. Portable sport devices
4. Access control terminals
5. Portable medical devices
6. Personal computer and office

Parameter Options & Notes
Screen Size(Diagonal inches) PCAP Capacitive touch panel 3"-86"
Resistive touch panel 4"-10.4"
Product Construction GG / G1F / GFF / PG / FG
Integration Tape Bonding / Optical Bonding ( OCA, OCF & LOCA )
Cover Lens
Cover Lens Thickness 0.55mm-10mm
Cover Lens Material CS Glass, Gorilla Glass,Heat Tempered, PET, PMMA,Borosilicate, etc.
Additional Options Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location COB / COF
Controller Type Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface I2C, USB, RS232, UART
Operating System Windows XP, 7-10, Linux, iOS,  Android
Performance Options 2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance Metal Mesh / Firmware Tuning / EMI Filters



Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

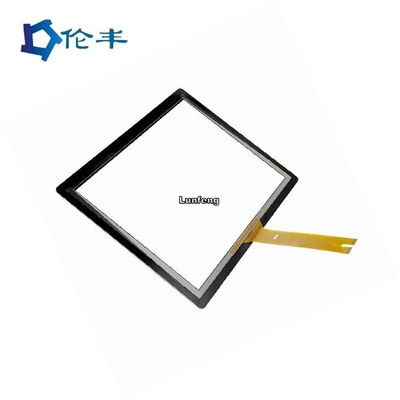

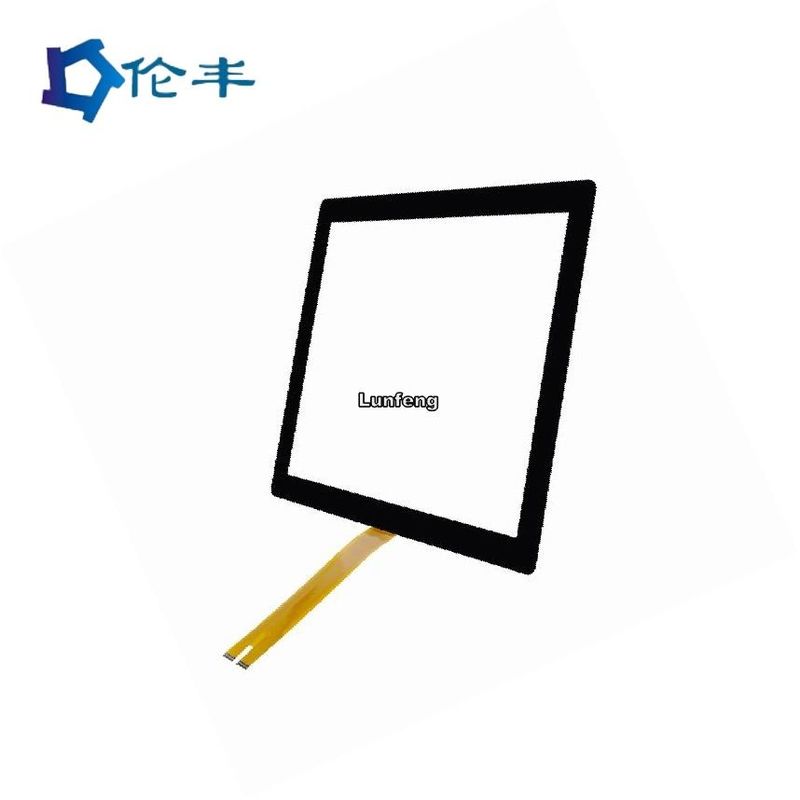

I2C GG Capacitive Touch Panel 42 Inch Android Usb Touchscreen 0I2C GG Capacitive Touch Panel 42 Inch Android Usb Touchscreen 1
