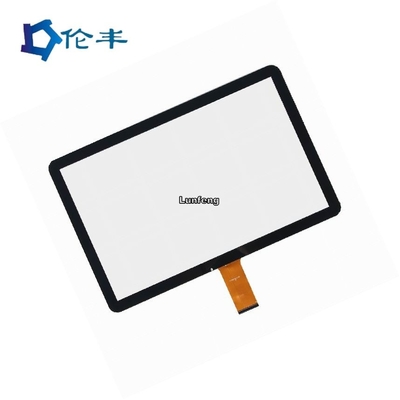

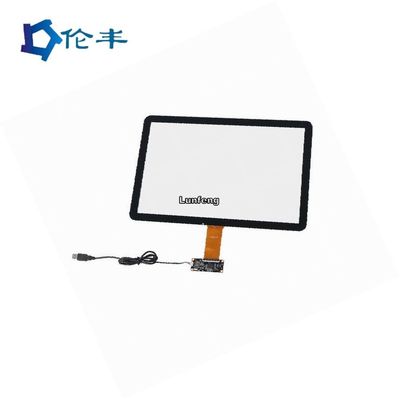

17.3 Inches Projected Capacitive Touch Screen Overlay with Multi-Touch for Industrial Applications

Brand Name:	Lunfeng
Model Number:	CTP007
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Interface:

I2C, USB, RS232, UART

Size:

17.3"

Sizes:

Customized Size, 7 10.1 12.1 12.3 15 15.6 17 18.5 19 21.5 27 32 43 55 Inch

Optical:

Anti-Glare / Anti-Reflection

Structures:

GG / G1F / GFF / PG / FG

Cover Lens Thickness:

0.55mm-10mm

Cover Lens Material:

CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate

Controller Location:

COB / COF

Controller Type:

Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied

Operating System:

7-10, Linux, IOS, Android

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

UART projected capacitive touch screen

17.3 Inches projected capacitive touch screen

I2C USB capacitive touch screen overlay

Product Description

UART Projected Capacitive Touch Screen Overlay 17.3 Inches I2C USB

Product Overview

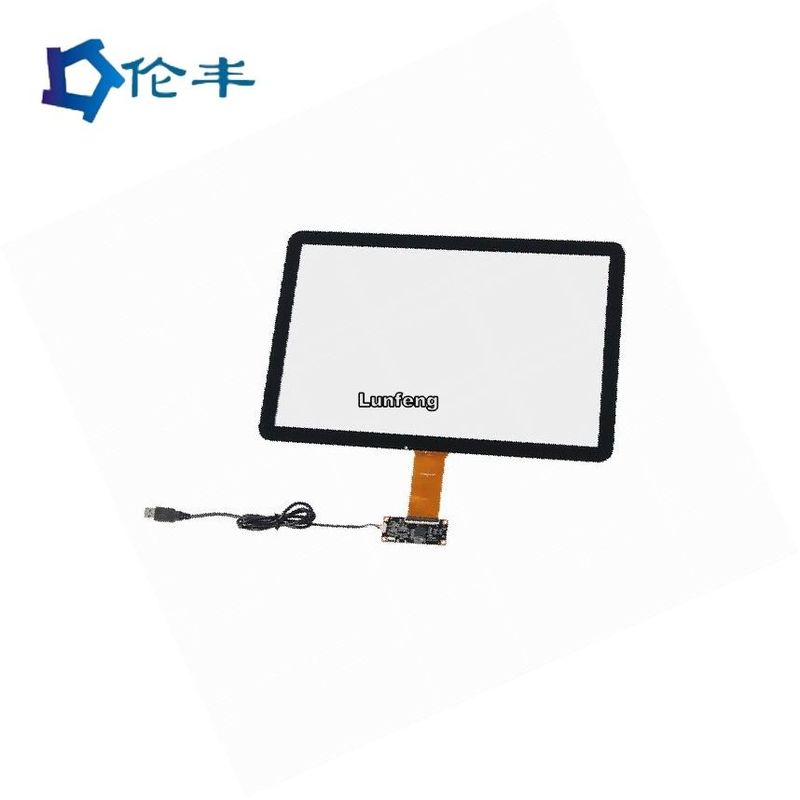

17.3 Inches Projected Capacitive Touch Screen Overlay Kit

Capacitive touch screens feature a robust glass cover and have a much higher endurance. Thus the surface of a capacitive touch screen looks premium and lasts longer.

A second advantage of capacitive touch screens is the ability to detect multi touches. This opens new applications like scaling or rotating pictures by moving two fingers over the screen.

Capacitive touch sensing will become increasingly popular, not only for consumer products but also white goods and industrial applications, for reasons of usability, robustness and cost efficiency. The technology and available products are mature and allow the design of reliable solutions.

The discussed example implementation Fujitsu's FMA1127 is an ASSP with a robust digital capacitive sensing method which offers high performance and easy, fast integration into embedded systems.

Applications

Light industrial
Home appliances
Portable sport devices
Access control terminals
Portable medical devices
Personal computer and office

Technical Specifications

Parameter	Options & Notes
Screen Size (Diagonal inches)	PCAP Capacitive touch panel 3"-86" Resistive touch panel 4"-10.4"
Product Construction	GG / G1F / GFF / PG / FG
Integration	Tape Bonding / Optical Bonding (OCA, OCF & LOCA)
Cover Lens
Cover Lens Thickness	0.55mm-10mm
Cover Lens Material	CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate, etc.
Additional Options	Silk screening, logos, cut outs, colored glass, etc.
Touch Controller & Interface
Controller Location	COB / COF
Controller Type	Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface	I2C, USB, RS232, UART
Operating System	Windows 7-10, Linux, iOS, Android
Performance Options	2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements
Optical	Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others	Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance	Metal Mesh / Firmware Tuning / EMI Filters

Frequently Asked Questions

Q1: Are you a factory or trade company?

A: Lunfeng is a manufacturer/factory. We specialize in membrane switches for 26 years, touch panels for 10 years.

Q2: Is my switch file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture touch panels for someone else without your permission. NDA is acceptable.

Q3: Can you copy membrane switch/graphic overlay/capacitive or resistive touch panel samples without file?

A: Yes, we can clone membrane switch/graphic overlay according to your samples.

Q4: What payment do you accept?

A: TT/Western Union.

Q5: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

A: NO MOQ.

Q7: What's your main market?

A: Europe, USA, Brazil, Russia, Turkey, Iran, Australia, Singapore...
