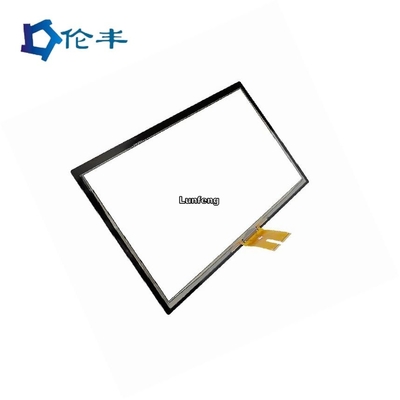

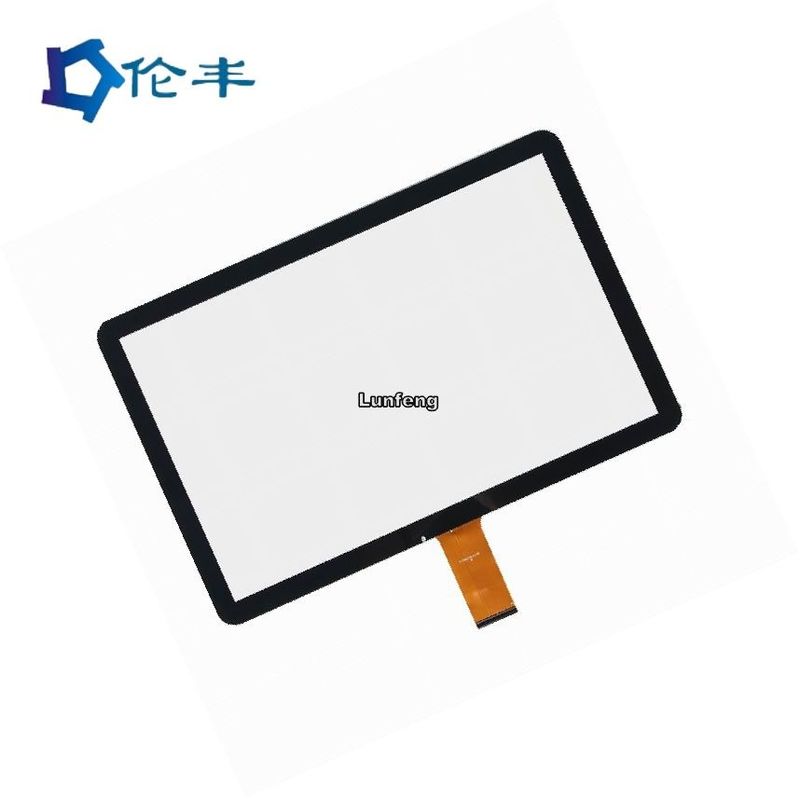

15 Inch G1F Capacitive Touch Panel with RS232 Interface for Industrial Applications

Brand Name:	Lunfeng
Model Number:	CTP008
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Size:

15"

Structures:

GG / G1F / GFF

Optical:

Anti-Glare / Anti-Reflection

Interface:

I2C, RS232

Cover Lens Thickness:

0.55mm-10mm

Cover Lens Material:

CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate

Controller Type:

Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied

Operating System:

Windows XP, 7-10, Linux, IOS, Android

Performance Options:

2-50 Touch Points, Palm Rejection, Water Rejection, Gloved Use, Gestural Controls, Active Stylus

EMI Resistance:

Metal Mesh / Firmware Tuning / EMI Filters

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

GFF G1F Capacitive Touch Panel

RS232 overlay Capacitive Touch Panel

15 inch capacitive touch screen

Product Description

GFF G1F Capacitive Touch Panel RS232 Overlay 15 Inch Capacitive Touch Screen

15 inch capacitive touch frame, capacitive touch overlay, touch screen

Capacitive touch screens applied to TFT (Thin Film Transistor) or OLED (Organic Light Emitting Diode) displays offer higher clarity than resistive methods and are not affected by outside elements. The capacitive touch screen panel is coated with a thin material that stores electrical charges like a capacitor. There are two layers of glass, each coated with Indium Tin Oxide (ITO). When this surface is touched, a small charge is drawn to the point of contact. Circuits located in the corners relay this information to the controller for processing.

Advantages: Made of glass instead of plastic, providing brighter and sharper display quality. Highly touch sensitive, doesn't require a stylus, and supports multi-touch functionality.

Limitations: Must be touched by a human finger or capacitive stylus (relies on the capacitive nature of the human body). Other considerations include complex structure, higher cost, and reduced durability (glass breaks more easily than plastic).

Applications

Light industrial
Home appliances
Portable sport devices
Access control terminals
Portable medical devices
Personal computer and office equipment

Technical Specifications

Parameter	Options & Notes
Screen Size (Diagonal inches)	PCAP Capacitive touch panel 3"-86" Resistive touch panel 4"-10.4"
Product Construction	GG / G1F / GFF / PG / FG
Integration	Tape Bonding / Optical Bonding (OCA, OCF & LOCA)
Cover Lens Thickness	0.55mm-10mm
Cover Lens Material	CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate, etc.
Additional Options	Silk screening, logos, cut outs, colored glass, etc.
Controller Location	COB / COF
Controller Type	Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface	I2C, USB, RS232, UART
Operating System	, 7-10, Linux, iOS, Android
Performance Options	2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Product Enhancements	Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Others	Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance	Metal Mesh / Firmware Tuning / EMI Filters

Frequently Asked Questions

Q1: Are you a factory or trade company?

A: Lunfeng is a manufacturer/factory. We specialize in membrane switches for 26 years and touch panels for 10 years.

Q2: Is my switch file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture touch panels for someone else without your permission. NDA is acceptable.

Q3: Can you copy membrane switch/graphic overlay/capacitive or resistive touch panel samples without file?

A: Yes, we can clone membrane switches/graphic overlays according to your samples.

Q4: What payment do you accept?

A: TT/Western Union.

Q5: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

A: NO MOQ.

Q7: What's your main market?

A: Europe, USA, Brazil, Russia, Turkey, Iran, Australia, Singapore...
