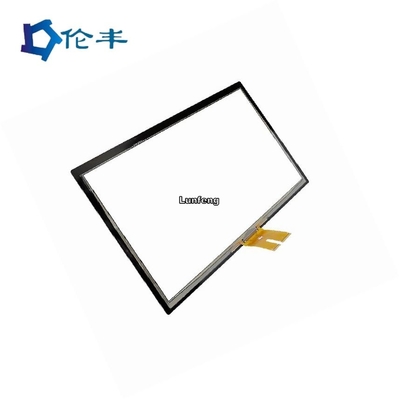

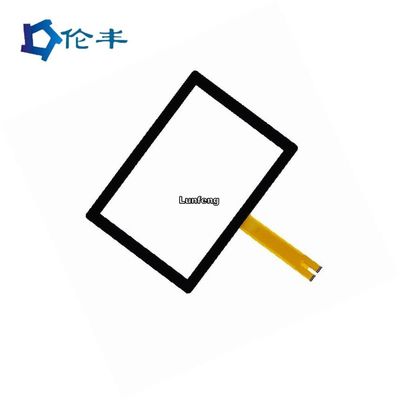

Industrial 13.3 Inch Capacitive Touch Screen with RS232 Interface and Anti-Reflection for Home Appliances

Brand Name:	Lunfeng
Model Number:	CTP009
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Screen Size:

13.3"

Touch Type:

Projected Capacitive

Interface:

RS232

Optical Feature:

Anti-Reflection

Structure:

GFF

Cover Lens Thickness:

0.55mm-10mm

Cover Lens Material:

CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate

Controller Location:

COB / COF

Controller Type:

Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied

Operating System:

7-10, Linux, IOS, Android

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

COB 13.3 inch capacitive touch screen

RS232 13.3 inch capacitive touch screen

gff touch panel

Product Description

COB 13.3 Inch Capacitive Touch Screen RS232 Gff Touch Panel Anti-Reflection

Industrial COB 13.3 Inches Projected Capacitive Touch Screen

Capacitive touch screens are laid out in a checkerboard pattern to sense touch. They can be manufactured with either two layers or a single layer of ITO, with single-layer construction providing a clearer screen display.

Capacitive touch-screen control allows for the use of a safety glass layer to cover the top structure, creating a sealed and durable design. This glass is chemically strengthened to become highly resistant to scratches and damage, transforming the touchscreen from a potential weakness into a structural strength.

Capacitive touchscreens offer superior reliability. Even when broken or shattered, they typically remain functional for field workers until replacement, unlike resistive touch screens which often become unusable when damaged.

Applications

Light industrial
Home appliances
Portable sport devices
Access control terminals
Portable medical devices
Personal computer and office equipment

Technical Specifications

Parameter	Options & Notes
Screen Size (Diagonal inches)	PCAP Capacitive touch panel 3"-86" Resistive touch panel 4"-10.4"
Product Construction	GG / G1F / GFF / PG / FG
Integration	Tape Bonding / Optical Bonding (OCA, OCF & LOCA)
Cover Lens Thickness	0.55mm-10mm
Cover Lens Material	CS Glass, Gorilla Glass, Heat Tempered, PET, PMMA, Borosilicate, etc.
Additional Options	Silk screening, logos, cut outs, colored glass, etc.
Controller Location	COB / COF
Controller Type	Silicon Works / EETI / Weida / Ilitek / Goodix / Customer Supplied
Interface	I2C, USB, RS232, UART
Operating System	Windows 7-10, Linux, iOS, Android
Performance Options	2-50 touch points, palm rejection, water rejection, gloved use, gestural controls, active stylus, etc.
Optical Enhancements	Anti-Glare / Anti-Reflection / Mirror Finish / Dead Front
Other Enhancements	Anti-Fingerprint / Anti-Shatter Film / Hard Coat
EMI Resistance	Metal Mesh / Firmware Tuning / EMI Filters

Frequently Asked Questions

Q1: Are you a factory or trade company?

Lunfeng is a manufacturer/factory. We specialize in membrane switches for 26 years and touch panels for 10 years.

Q2: Is my switch file safe if I send it to you for manufacturing?

We respect customer's design authority and will never manufacture touch panels for someone else without your permission. NDA is acceptable.

Q3: Can you copy membrane switch/graphic overlay/capacitive or resistive touch panel samples without file?

Yes, we can clone membrane switches/graphic overlays according to your samples.

Q4: What payment do you accept?

TT/Western Union.

Q5: What's your shipping way?

1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

NO MOQ.

Q7: What's your main market?

Europe, USA, Brazil, Russia, Turkey, Iran, Australia, Singapore...
