6 Layer FPC Flexible Circuit Board Polyimild Cable for Medical Equipment and Electronic Devices

Brand Name:	Lunfeng
Model Number:	FPC001
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Base Material:

Polyimild

Board Thickness:

0.2-6mm

Min. Line Spacing:

0.003''

Min. Line Width:

0.075mm/0.075mm(3mil/3mil)

Min. Hole Size:

0.1mm(4mil)for HDI / 0.15mm(6mil)

Surface Finishing:

HASL/OSP/Ag/ENIG/ENEPIG/Immersion Silver/Tin

Copper Thickness:

0.4-2mil(10-50um)

Layer:

1-6layer

FPC Size(max/min):

Min: 10x45mm Max:250x1200mm

Thickness:

0.050mm--0.2mm

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

6 layer FPC Flexible Circuit Board

PCB cable FPC Flexible Circuit Board

Polyimild flex pcb assembly

Product Description

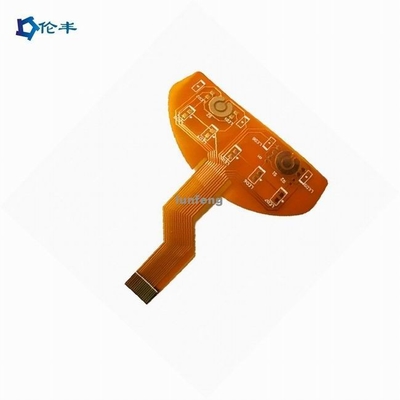

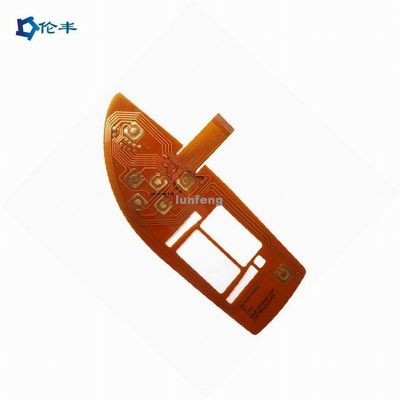

6 Layer FPC Flexible Circuit Board Polyimide Cable Flex PCB Assembly

FPC Flexible Circuit Board flexible PCB FPC cable

PCB is structured like a layered cake, featuring alternating layers of different materials that are laminated together using heat and adhesive. Double layer PCB manufacturing, also referred to as Double-Sided Printed Circuit Board, involves a printed circuit board with two conductive pattern layers. Double Sided PCB circuits enable closer and more extensive routing traces by alternating between top and bottom layers using vias. Currently, double sided printed circuit board technology represents the most widely used PCB type in the industry.

FPC Cable (Flexible Printed Circuit) Specifications

Parameter	Specification
Layer	1-6 layer
FPC Size (Max/Min)	Min: 10x45mm \| Max: 250x1200mm
Thickness	0.050mm - 0.2mm
Through Hole Diameter (Max)	6.5mm
Through Hole Size (Min)	0.2mm
Through Hole Tolerance	±0.025mm
Hole Copper Thickness	Min 8μm \| Max 38μm
Min Line Width/Space	0.04/0.04 mm
Etching Tolerance	±20%
Pattern Accuracy on Hole	±2mil
Punching Size (Max)	φ3.175mm
Punching Size (Min)	φ2.0mm
Punching Aperture Thickness (Max)	0.2mm
Thermosetting Inks Tolerance	±0.2mm
Green Oil (Min)	0.1mm
Solder Pad (Min)	8mil×8mil
Solder Pad Distance (Min)	8mil
Tolerance (Min)	±0.1mm
Available Laminates Material	PI, PET, FR4-PI
Copper Foil Thickness	12um, 18um, 35um, 70um
