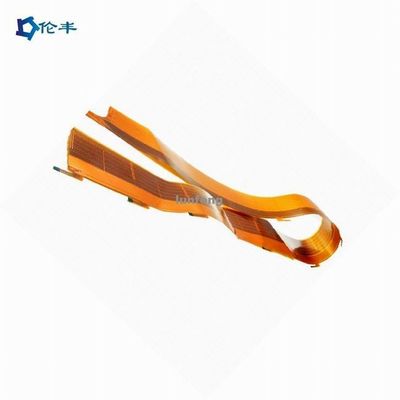

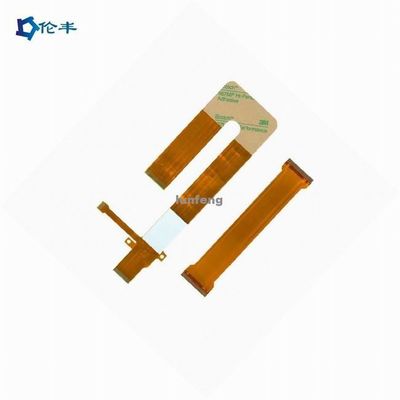

0.2-6mm Punching/Laser Cut/Drilled FPC Flexible Circuit Board for Medical Equipment

Brand Name:	Lunfeng
Model Number:	FPC005
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Material:

Polyimild, PI

Board Thickness:

0.2-6mm

Outline Profile:

Punching/Laser Cut/Drilled

Surface Finishing:

HASL/ OSP/ Ag/ ENIG/ ENEPIG/ Immersion Silver/Tin

Min. Line Width:

0.1mm

Copper Thickness:

0.4-2mil(10-50um)

Layer:

1-6layer

FPC Size(max/min):

Min: 10x45mm Max:250x1200mm

Through Hole Diameter:

Max: 6.5mm

Through Hole Size:

Min: 0.2mm

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

0.2-6mm flex board pcb

Electronic equipment flex board pcb

Punching flat flex pcb

Product Description

Electronic Equipment Flex Board PCB 0.2-6mm Punching Flat Flex PCB

FPC Flexible Circuit Board Flexible Printed Circuit

Flexible Circuit Boards Classification Based on Layers

Single-Sided Flexible Circuit Boards

This is among the basic types of flexible circuit boards based on layers. It contains a single layer of polyimide film and a slim layer of copper.

Single-Sided Flexible Circuit Boards with Dual Access

Just like the name suggests, these circuit boards are single-sided but have the copper sheet accessible from both sides.

Double-Sided Flexible Circuit Boards

These particular circuit boards contain a double layer of conductors on either side of the polyimide layer.

Multi-Layered Flexible Circuits

This circuit contains a combination of double-sided and one-sided flexible circuits.

Based on the aforementioned types of flexible circuit boards, it is evident that designers and engineers have a wider spectrum of selection for different applications. It is this flexibility that makes flexible circuit boards highly beneficial.

FPC Cable (Flexible Printed Circuit) Specifications

Parameter	Specification
Layer	1-6 layer
FPC size (max/min)	Min: 10x45mm Max: 250x1200mm
Thickness	0.050mm - 0.2mm
Through Hole diameter (Max)	6.5mm
Through hole size (min)	0.2mm
Through hole tolerance	±0.025mm
Hole copper thickness	Min 8μm Max 38μm
Min line width/space	0.04/0.04 mm
Etching Tolerance	±20%
The accuracy of the pattern on the hole	±2mil
Punching size (max)	φ3.175mm
Punching size (min)	φ2.0mm
Punching aperture Thickness (Max)	0.2mm
Thermosetting inks tolerance	±0.2mm
Green oil (Min)	0.1mm
Solder pad (min)	8mil*8mil
Solder pad distance (Min)	8mil
Tolerance (Min)	±0.1mm
Available Laminates Material	Pl. PET. FR4-Pl
Copper foil thickness	12um, 18um, 35um, 70um

Frequently Asked Questions

Q1: Are you a factory or trade company?

A: Lunfeng is a manufacturer/factory. We specialize in membrane switches for 26 years and touch panels for 10 years.

Q2: Is my switch file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture touch panels for someone else without your permission. NDA is acceptable.

Q3: Can you copy membrane switch/graphic overlay/capacitive or resistive touch panel samples without file?

A: Yes, we can clone membrane switch/graphic overlay/touch panel according to your samples.

Q4: What payment do you accept?

A: TT/Western Union.

Q5: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

A: NO MOQ.

Q7: What's your main market?

A: Europe, USA, Brazil, Russia, Turkey, Iran, Australia, Singapore...
