Polyimild Material 4 Layer FPC Flexible Circuit Board with 0.4-2mil Copper Thickness for Medical and Electronic Equipment

Brand Name:	Lunfeng
Model Number:	FPC004
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Material:

Polyimild, PI

Min. Line Spacing:

0.003''

Board Thickness:

0.2-6mm

Copper Thickness:

0.4-2mil(10-50um)

Layer:

1-6layer

FPC Size(max/min):

Min: 10x45mm Max:250x1200mm

Through Hole Diameter(Max):

6.5mm

Through Hole Size(min):

0.2mm

Hole Copper Thickness:

Min8μm Max 38μm

Min Line Width/space:

0.04/0.04 Mm

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

PI flexible circuit board material

Polyimild flexible circuit board material

0.4-2mil 4 layer flex pcb

Product Description

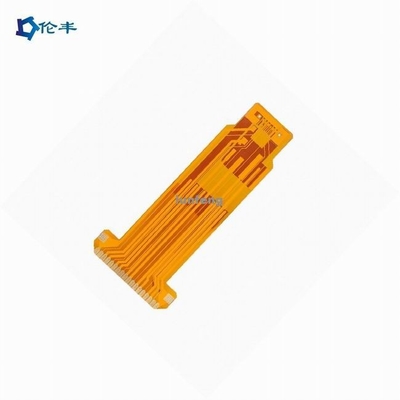

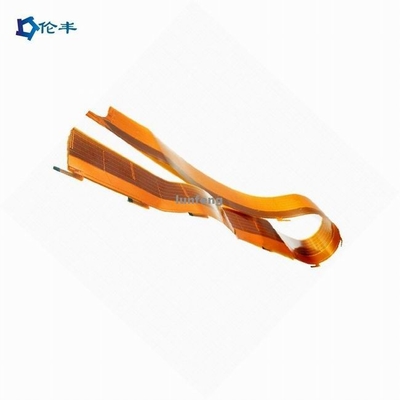

PI Polyimide Flexible Circuit Board Material 0.4-2mil 4 Layer Flex PCB

FPC Flexible Circuit Board

What Are Flexible Printed Circuits?

Flexible printed circuits are specialized circuit boards designed to bend or twist, distinguished by their flexible construction. Electronic engineers and designers utilize them in applications that require these unique qualities.

Commonly referred to as flex circuits, they are primarily used in compact electronic applications. Their flexibility is achieved through the use of flexible substrate materials such as polyimide.

An important advantage of flexible printed circuits is their superior heat dissipation compared to traditional printed circuit boards. This characteristic helps maintain electronic components in optimal condition for extended periods.

FPC Cable Specifications

Parameter	Specification
Layer	1-6 layer
FPC Size (Max/Min)	Min: 10x45mm, Max: 250x1200mm
Thickness	0.050mm - 0.2mm
Through Hole Diameter (Max)	6.5mm
Through Hole Size (Min)	0.2mm
Through Hole Tolerance	±0.025mm
Hole Copper Thickness	Min 8μm, Max 38μm
Min Line Width/Space	0.04/0.04 mm
Etching Tolerance	±20%
Pattern Accuracy on Hole	±2mil
Punching Size (Max)	φ3.175mm
Punching Size (Min)	φ2.0mm
Punching Aperture Thickness (Max)	0.2mm
Thermosetting Inks Tolerance	±0.2mm
Green Oil (Min)	0.1mm
Solder Pad (Min)	8mil×8mil
Solder Pad Distance (Min)	8mil
Tolerance (Min)	±0.1mm
Available Laminates Material	PI, PET, FR4-PI
Copper Foil Thickness	12um, 18um, 35um, 70um
