0.4-2mil Copper Thickness FPC Flexible Circuit Board with Gold Plating Surface Finishing and Customized Size

Brand Name:	Lunfeng
Model Number:	FPC007
MOQ:	1 piece
Payment Terms:	T/T,Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Material:

Polyimild, PI

Min. Hole Size:

0.2mm/0.3mm

Board Thickness:

0.2-6mm

Surface Finishing:

Gold Plating

Copper Thickness:

0.4-2mil(10-50um)

Layer:

1-6layer

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

0.4-2 mil FPC Flexible Circuit Board

cable FPC Flexible Circuit Board

connector flexible printed circuit

Product Description

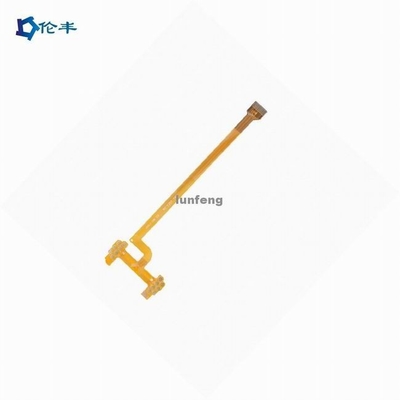

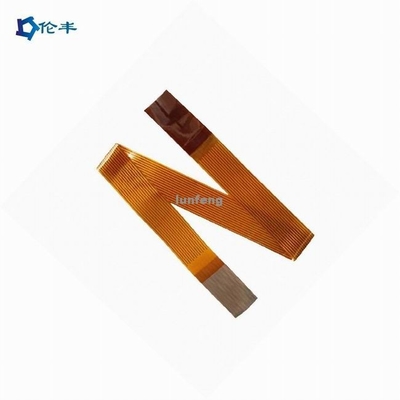

0.4-2 Mil FPC Flexible Circuit Board Cable Connector Flexible Printed Circuit

FPC Flexible Circuit Board Flex Cable with Connector

Flexible circuit boards play a significant role in the functioning of electronics by enabling their operation through conductive pathways and electronic components. These circuits are essential components in numerous electronic devices including smartphones, tablets, smart watches, calculators, and many more.

It's important to note that different types of circuit boards serve different applications. Specifically, flexible printed circuits (FPC) and printed circuit boards (PCB) have distinct characteristics and applications. Understanding these differences is crucial for designers to prevent system failures. One major distinction is that flexible printed circuits can bend, while traditional printed circuit boards cannot. Engineers leverage both mechanical and structural differences between these circuits when implementing them in electronic devices.

From the discussion above, it's evident that flexible printed circuits offer diverse applications and multiple benefits in modern electronics.

FPC Cable (Flexible Printed Circuit) Specifications

Parameter	Specification
Layer	1-6 layer
FPC Size (Max/Min)	Min: 10x45mm, Max: 250x1200mm
Thickness	0.050mm - 0.2mm
Through Hole Diameter (Max)	6.5mm
Through Hole Size (Min)	0.2mm
Through Hole Tolerance	±0.025mm
Hole Copper Thickness	Min 8μm, Max 38μm
Min Line Width/Space	0.04/0.04 mm
Etching Tolerance	±20%
Pattern Accuracy on Hole	±2mil
Punching Size (Max)	φ3.175mm
Punching Size (Min)	φ2.0mm
Punching Aperture Thickness (Max)	0.2mm
Thermosetting Inks Tolerance	±0.2mm
Green Oil (Min)	0.1mm
Solder Pad (Min)	8mil*8mil
Solder Pad Distance (Min)	8mil
Tolerance (Min)	±0.1mm
Available Laminates Material	Pl, PET, FR4-Pl
Copper Foil Thickness	12um, 18um, 35um, 70um

Frequently Asked Questions

Q1: Are you a factory or trade company?

A: Lunfeng is a manufacturer/factory. We specialize in membrane switches for 26 years and touch panels for 10 years.

Q2: Is my switch file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture touch panels for someone else without your permission. NDA is acceptable.

Q3: Can you copy membrane switch/graphic overlay/capacitive or resistive touch panel samples without file?

A: Yes, we can clone membrane switch/graphic overlay/touch panel according to your samples.

Q4: What payment do you accept?

A: TT/Western Union.

Q5: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

A: NO MOQ.

Q7: What's your main market?

A: Europe, USA, Brazil, Russia, Turkey, Iran, Australia, Singapore...
