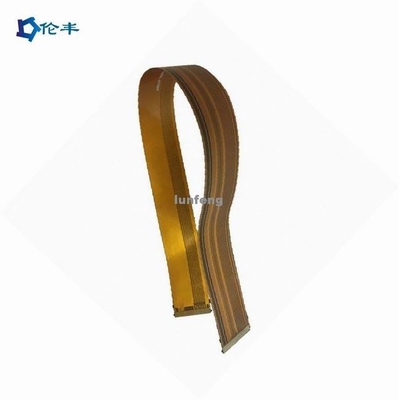

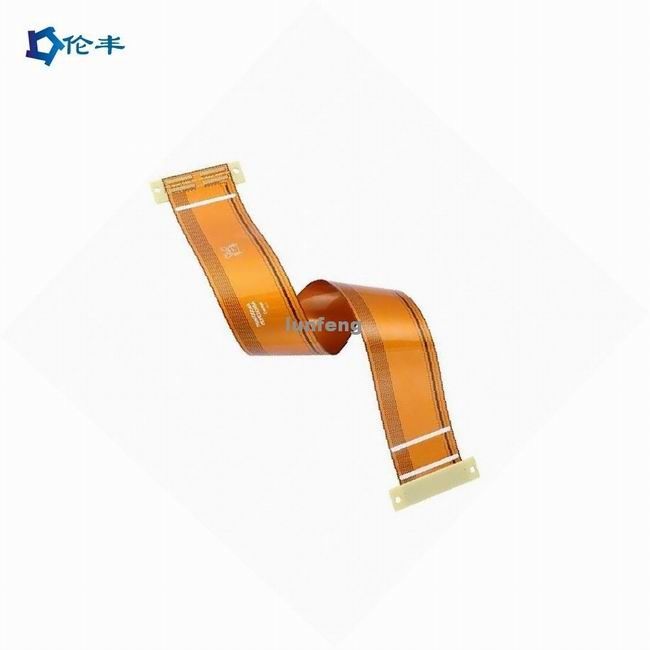

Polyimild PI Film FPC Flexible Circuit Board PCB Cable 1-6layer

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: FPC011
Minimum Order Quantity: 1 piece
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Name: Flex Printed Circuit FPC Flexible Circuit Board Flexible PCB FPC Cable Application: Consumer Electronics, Electronic Product
Material:: Polyimild, PI Copper Thickness:: 0.4-2mil(10-50um),
Board Thickness:: 0.2-6mm Size: Customized
Surface Finishing:: HASL/ OSP/ Ag/ ENIG/ ENEPIG/ Immersion Silver/Tin Solder Mask: Yellow PI Film
Item: OEM ODM Outline: Punching / Laser Cut / Drilled
Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ,
High Light:

Polyimild FPC Flexible Circuit Board

,

PI Film FPC Flexible Circuit Board

,

PCB Flex Printed Circuit

Flex Printed Circuit FPC Flexible Circuit Board flexible PCB FPC cable



Benefits of Flexible Printed Circuits

Accuracy of designs


Since flexible printed circuits are mostly designed using automated machinery, the margin of error in designs is less. This is a major characteristic of superior electronic devices. Most of the advanced electronic devices in use today use flexible circuit boards because of the high level of precision expected of them. Examples of the devices that require a high level of precision include those used in medical settings.



They are lightweight


The circuit boards can be folded easily, thus they can be positioned in compartments where other components find it hard to fit. Engineers take advantage of these circuits being lightweight to reduce package size.



Flexibility


Due to their ability to be flexible, they are able to relieve users of the stress of weight and space that rigid circuit boards often generate. It is possible to bend flexible circuit boards to various levels when installing them. This makes it possible to enhance the functionality levels of various electronics.



FPC cable ( Flexible Printed Circuit ) Specifications
Layer 1-6layer
FPC size(max/min) Min: 10x45mm Max:250x1200mm
Thickness 0.050mm—0.2mm
Through Hole diameter(Max) 6.5mm
Through hole size(min) 0.2mm
Through hole tolerance ±0.025mm
Hole copper thickness Min8μm Max 38μm
Min line width/space 0.04/0.04 mm
Etching Tolerance ±20%
The accuracy of the pattern on the hole ±2mil
Punching size(max) φ3.175mm
Punching size(min) φ2.0mm
Punching aperture Thickness(Max) 0.2mm
Thermosetting inks tolerance ±0.2mm
Green oil(Min) 0.1mm
Solder pad(min) 8mil*8mil
Solder pad distance(Min) 8mil
tolerance(Min) ±0.1mm
Available Laminates Material Pl. PET. FR4-Pl
Copper foil thickness
12um, 18um, 35um, 70um



FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is an manufacturer/factory. We pecialize in memrbane switch for 26 years, touch panel for 10 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture touch panel for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay / capacitive or resistive touch panel samples without file?
A : Yes, we can clone membrane switch/ graphic overlay / touch panel according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : NO MOQ.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
