RAL Color Metal Dome Membrane Switch 3M468 Tactile Membrane Keypad

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFMS05
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Metal Dome Membrane Switch Tactile Membrane Keypad Colors: Pantone/ RAL Color, Blue, Gray, White
Feature: LCD Window, Shielding Layer Key Option: Tactile Pillow Embossing Button
Application: Medical/ Industrial/ Household Equipment, Etc Rear Adhesive: 3M467/468
Surface Finish: Glossy Or Matte Cable: Custom Cable Length, Flexible
Connector: 2.54mm Female Connector
High Light:

RAL color Metal Dome Membrane Switch

,

3M468 Metal Dome Membrane Switch

,

tactile membrane keypad

Metal Dome Membrane Switch tactile membrane keypad



The Membrane Switch has been applied to instruments and meters in various industries such as medical apparatus and instruments application. The Membrane panels are undoubtedly the lower supporting cost and increases the value of the whole machine.



Membrane Switch Specifications:



1. Material: PET Advised, Matte PC (smooth), Gloss PC + Matte Oil, Gloss PC And PVC

2. Color:Pantone And RAL Color Matching System

3. Thickness: 0.4---1.4mm

4. LED windows: Transparent And Translucent

5. Keys: No Embossed Keys And Domes

Domes Without Embossed Keys

Embossed Keys Without Domes

Embossed Keys And Domes

6. Adhesive: 3M9448, 3M300LSE, 3M467, 3M468 , etc.






Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

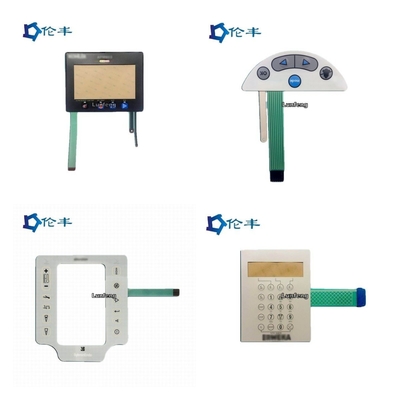

RAL Color Metal Dome Membrane Switch 3M468 Tactile Membrane Keypad 0

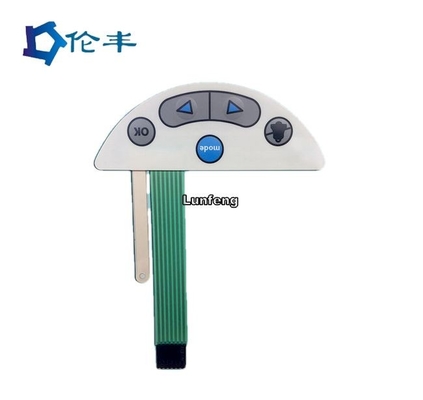

RAL Color Metal Dome Membrane Switch 3M468 Tactile Membrane Keypad 1
