Metal Dome Membrane Switch
Created with Pixso.

On Off Keypad Electronic Membrane Switches Pantone Embossing Keys

On Off Keypad Electronic Membrane Switches Pantone Embossing Keys

Brand Name: Lunfeng/Customer's brand
Model Number: LFZDX005
MOQ: 1 piece
Price: depending on the design
Payment Terms: TT/telegram transfer
Supply Ability: 500000 Piece/Pieces per Month
Detail Information
Place of Origin:
Shenzhen, Guangdong, China
Certification:
ISO9001:2015, SMETA 4P
Product Name:
Electronic Membrane Switches On Off Keypad
ColorS:
Pantone/ RAL Color, Gray, White, Black
Material:
PET, Autotype
Rear Adhesive:
3M467 3M9080
Feature:
Metal Domes, Matte Surface, FFC Circuit
Connector:
1.0mm Connector
Key:
Embossing Keys, GLOSSY Button
Type:
NO LED And Window
Packaging Details:
PE bag/foam/carton, as customer's request
Supply Ability:
500000 Piece/Pieces per Month
Highlight:

Keypad Electronic Membrane Switches

,

Pantone Electronic Membrane Switches

,

Embossing Metal Dome Membrane Switch

Product Description

Electronic Membrane Switches On Off Keypad



Membrane keypads and membrane switches offer designers of electronic equipment a flexible, customizable user interface which is compact, versatile, reliable and assembly friendly.



Membrane Features

Permark offer membrane keypads/switches that can incorporate the following:

Stainless Steel Tactile Inserts, giving a positive “click” when keys are pressed.
Dome embossed buttons (no inserts) – providing a softer tactile response.
Embossing of logo’s and keys with a rim emboss or pellow emboss.
LCD Windows can have a high gloss for clarity applied to otherwise “matt” finished overlays.
Embedded LED’s in white, red, green, orange, blue.
Transparent tinted LED windows in the colour of your choice.
“Dead front” Windows which are invisible until back lit. (like seatbelt signs in most cars)
ZIF or Female Clinch Connectors for tail termination. ( tail pitch of 2.4′ or 1mm).




Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm








1. Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2. Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3. Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours




FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.


Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

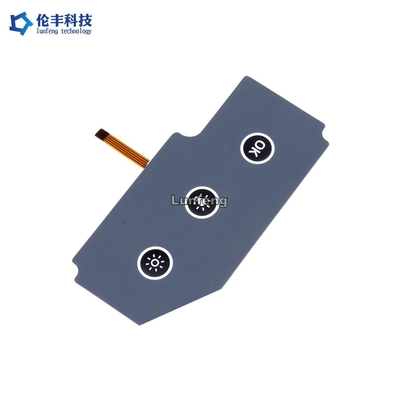

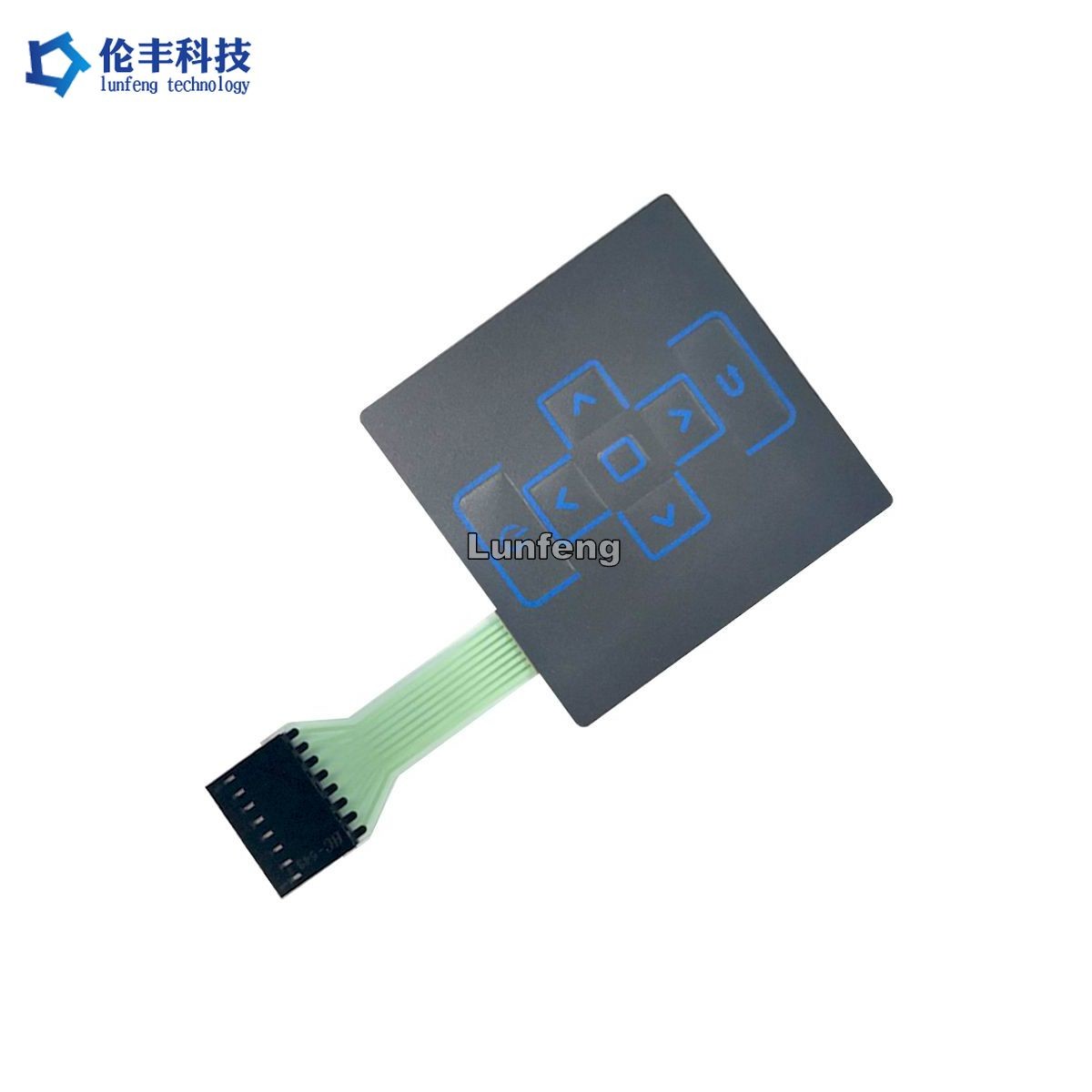

On Off Keypad Electronic Membrane Switches Pantone Embossing Keys 0On Off Keypad Electronic Membrane Switches Pantone Embossing Keys 1
