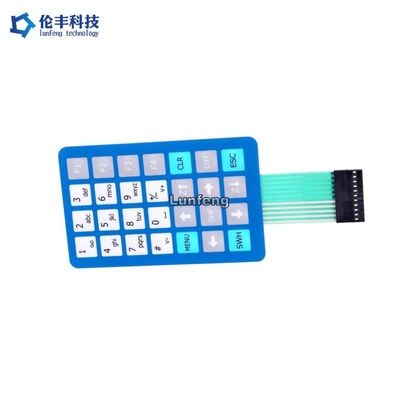

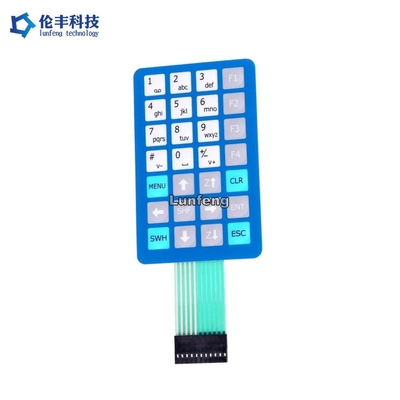

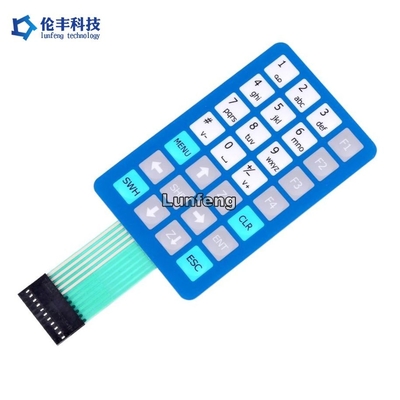

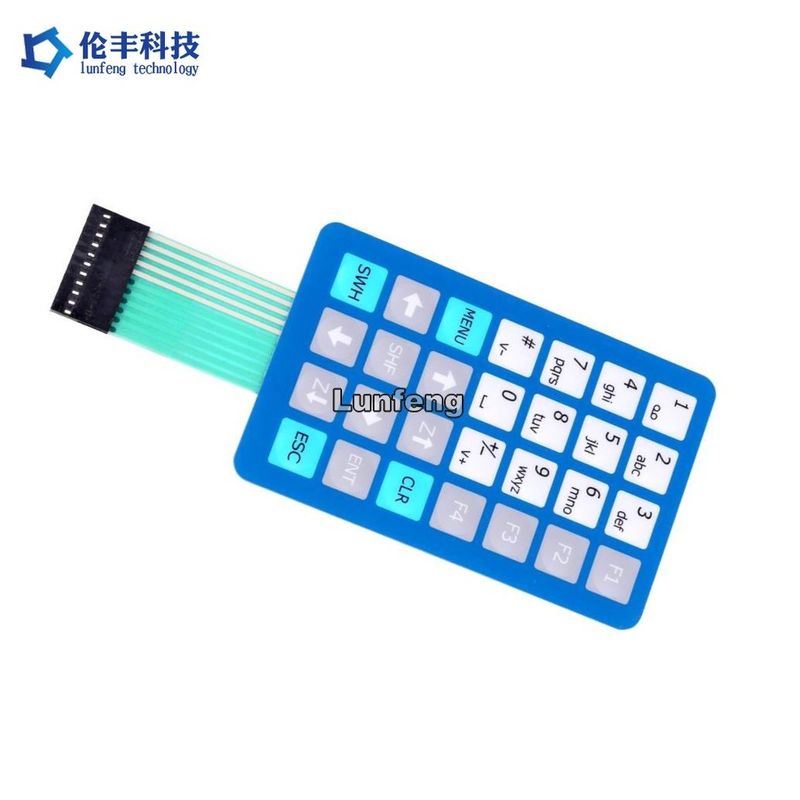

|Product Name:||Factory Customized Metal Dome Membrane Switch Screen Printing||ColorS:||Pantone/ RAL Color, Black, White， Green, Blue|
|Material:||PET, Polyester (PET), 0.188mm PET||Rear Adhesive:||3M468|
|Feature:||Metal Domes, Matte Surface, Silver Circuit||Connector:||2.54mm Pitch Black Connector|
|Key:||Embossed Keys, Embossing Buttons||Type:||NO Leds, With LCD Window, No Punch Holes|
2.54mm Pitch Metal Dome Membrane Switch,
Silver Circuit Metal Dome Membrane Switch,
3M468 Rear Adhesive Waterproof Membrane Keypad
Factory Customized Metal Dome Membrane Switch Screen Printing
What is Membrane Switch ?
A membrane Switch is a momentary switching device that is manufactured by using a series of flexible layers of polyester films and adhesives. The upper-most layer, called a graphic overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate film. Membrane switches can be constructed with multiple circuit layers, and more complicated graphic design features, such as domed key embossing. Designs that are more complex require, more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capablities to create the ideal custom user interface for their products.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
