Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Brand Name: | Lunfeng/Customer's brand |
Certification: | ISO9001:2015, SMETA 4P |
Model Number: | LFZDX081 |
Minimum Order Quantity: | 1 piece |
Price: | depending on the design |
Packaging Details: | PE bag/foam/carton, as customer's request |
Delivery Time: | normally 2-4 weeks, can be discussed |
Payment Terms: | TT/telegram transfer |
Supply Ability: | 500000 Piece/Pieces per Month |
Material: | PET, Polyester(PET), 0.188 Mm Glossy PET | Rear Adhesive: | 3M467 |
---|---|---|---|
ColorS: | Pantone/ RAL Color, Black, Blue, Red, White | Feature: | Matte Surface, SILVER Circuit Cable |
Connector: | 2.54mm Pitch, Black Connector | Key: | Embossed Keys Metal Domes, |
LED: | Leds, NO LGF Film | Window: | LCD Window, NO Punch Holes |
High Light: | Metal Dome Membrane Switch 35VDC,Glossy PET LED Membrane Switch,Metal Dome LED Membrane Switch |

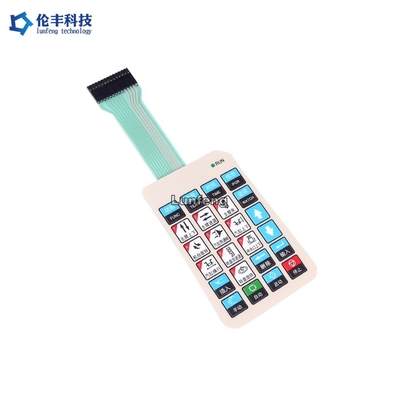

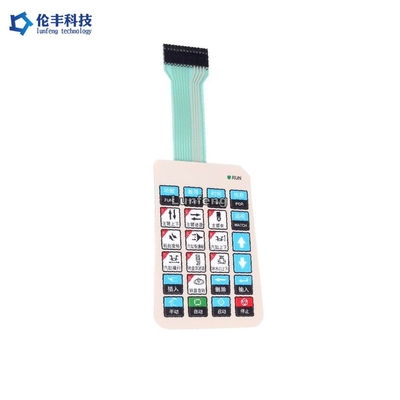

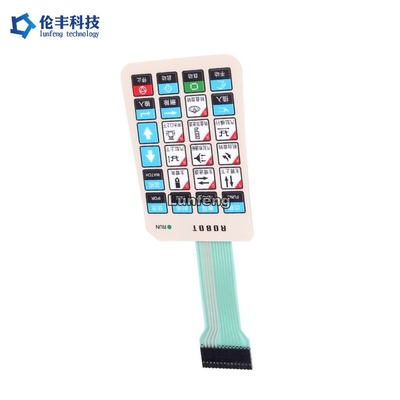

Polyester LED Metal Dome Membrane Switch, Membrane Switch Keyboard
he metal dome switches and snap dome are sure to be the switch button. If the various switches are separated from the Metal Domes, it loses its meaning, so it is said that the Metal Domes plays a key role in the switch, and it was later known as the metal dome switches and snap dome.
Application of a metal dome: used on button switches, membrane switches, tact keypads, self-locking switches, metal dome switches, and snap dome.
Function of metal dome switches: to power on and off, which can give the operator good tactile feedback.
Originally, there is no professional name called snap dome in the early days. And a snap dome is made of metal material. Because it is a dome, it can bounce upward and be concave downward (convex and concave). Its initial state is convex upward, and it will concave downward when the operator exerts a force, and then rebounds after the force is removed. This kind of elastic metal material is uniformly called metal dome or snap dome. Later, when metal dome switches were introduced into China, many people were used to calling them metal dome switches. Metal domes also referred to as metal snap domes or tactile metal domes
Applications:
Our Advantage:
Items | Silver Printed Circuit | Copper Etched FPC Circuit |
Material | PET (Polyester) | Copper |
Conductor | Printed silver | Copper |
Contact Fingers | Silver and Carbon | Gold plated |
Contact Buttons Pads | Silver | Gold plated |
Life & Reliability | normal | good |
Stability | normal | good |
Resistance | low | Very low |
Cost | low | high |
Lead Time | 2-3 days | 7-10 days |
Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
1. Electrical Properties | Membrane Switch | ||
Electrical Level: | 35V(DC), 100mA,1W | ||
Contact Resistance: | 10Ω~500 Ω | ||
Insulation Resistance: | 100MΩ/100V | ||
Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
Chattering Time: | ≤ 5ms | ||
Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
Tail Folding: | R>1,180 | ||
2. Mechanical Properties | |||
Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
3. Environmental and Storage Conditions | |||
Operation Temperature: | -40°C ~ +80°C | ||
Storage Temperature: | -40°C ~ +80°C | ||
Humidity: | 40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
