| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | FTMS887003 |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Name: | Tactile Metal Dome Membrane Switch For Medical Equipment | Application: | Medical Equipment |
|---|---|---|---|
| Keypad Button Material: | Rubber, PET, Metal, Polyester, PET/PC/PMMA/PE/PVC | Color: | Pantone And RAL |

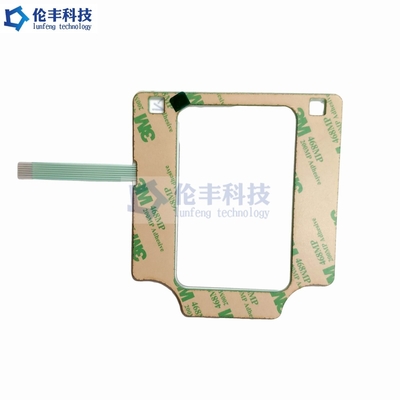

| Material: | PET PC PVC, Polyester, Polycarbonate, PET/PC/PVC, SUS304 | Rear Adhesive: | 3M467, 3M468, 3M9448, 3M9080... |
| Printing: | Screen Printing | Size: | Customized Size |
| Membrane Switch: | OEM Membrane Switch | Certification: | ISO9001: 2015 |
| Connector: | Male, Femail, ZIF, Housing Connector | Key Option: | Flat, Embossing |
| Surface Finish: | Glossy, Matte | Feature: | Water-proof, Shielding, Backlight, Durable, Long Service Life |

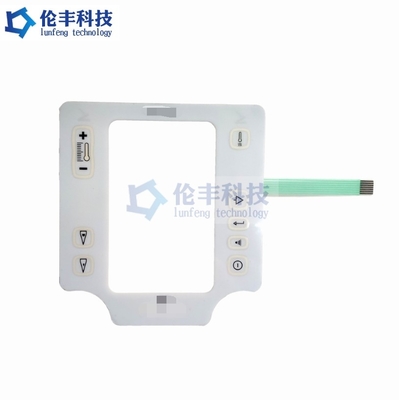

| High Light: | 3M9448 non tactile Flat Membrane Switch,3M9080 Flat Membrane Switch,LCD window PET membrane switch |
||
|
1.Electrical Properties
|
Membrane Switch
|
||
|
Electrical Level:
|
35V(DC), 100mA,1W
|
||
|
Contact Resistance:
|
10Ω~500 Ω
|
||
|
Insulation Resistance:
|
100MΩ/100V
|
||
|
Dielectrics Voltage-resistance:
|
250VRms(50~60Hz 1min)
|
||
|
Chattering Time:
|
≤ 5ms
|
||
|
Life Time:
|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
|
||
|
Tail Folding:
|
R>1,180
|
||
|
|
|
||
|
2.Mechanical Properties
|
|
||
|
Operating Force:
|
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
|
||
|
Switch Stroke:
|
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
|
||
|
|
|
||
|
3.Environmental and Storage Conditions
|
|
||
|
Operation Temperature:
|
-40°C ~ +80°C
|
||
|
Storage Temperature:
|
-40°C ~ +80°C
|
||
|
Humidity:
|
40°C, 90%~95%, 240 hours
|
