|Product Name:||Customized Design Flat Membrane Switch With Flexible Circuit And Connector||ColorS:||Pantone/ RAL Color, White, Black, Blue|
|Material:||PET, Polyester(PET),||Rear Adhesive:||3M Adhesive 3M468|
|Feature:||No Metal Domes, Matte Surface, FPC Circuit||Connector:||1.0mm Pitch ZIF End|
|Key:||Flat Keys, Flat Buttons||Type:||Without Leds, NO LCD Window|
ZIF End Flat Membrane Switch,
Pantone Color Flat Membrane Switch,
Flat FPC Membrane Switch

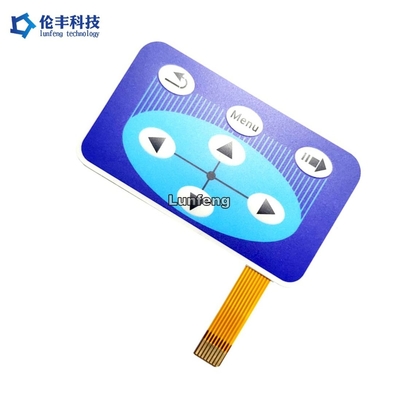

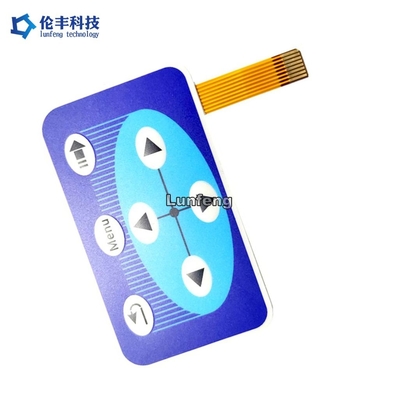

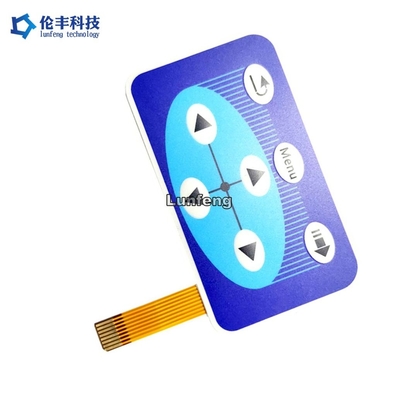

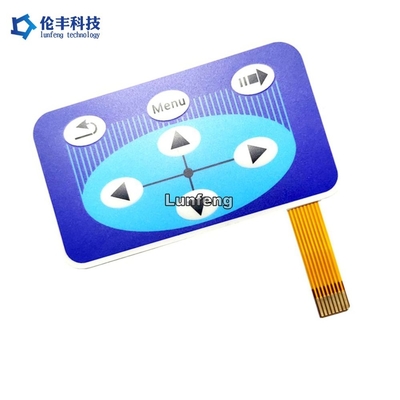

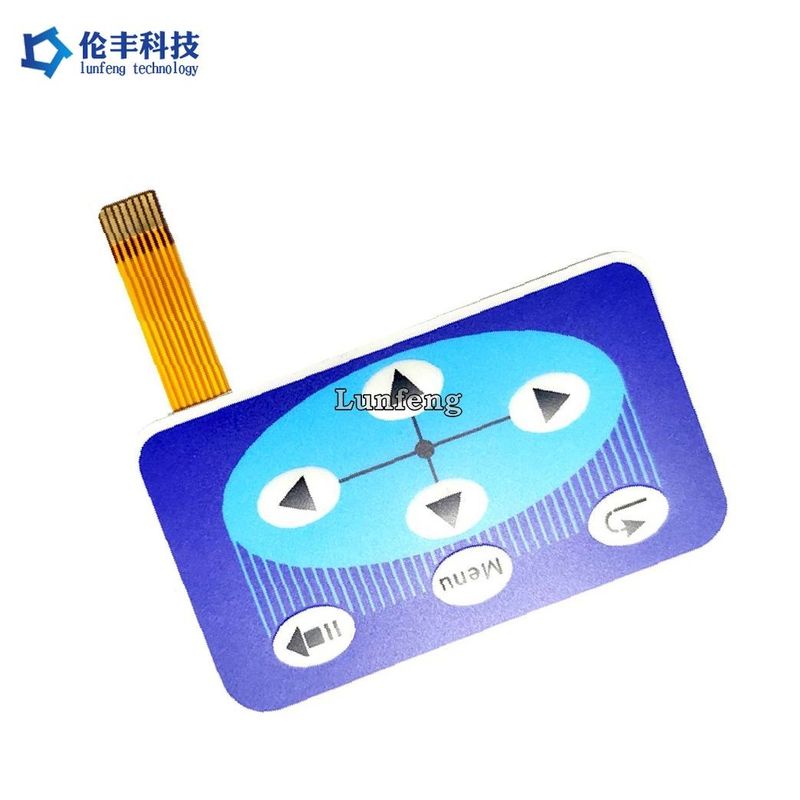

Customized Design Flat Membrane Switch With Flexible Circuit And Connector
What is a Membrane Switch?
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screen printing the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical switch.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
