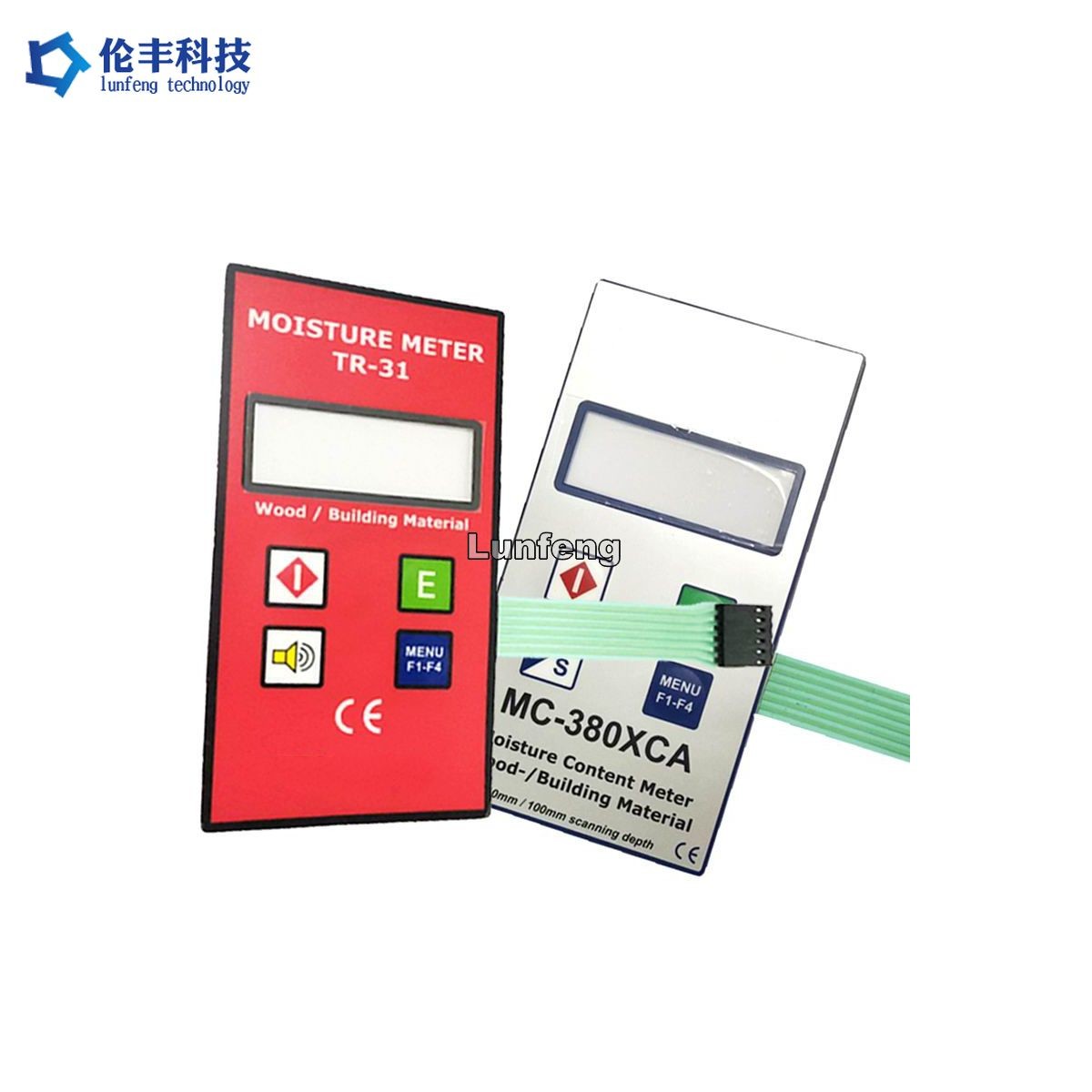

Custom Polyester Flat Membrane Switch, Membrane Switch Panel With Flexible Circuit
What is a Membrane Switch?
A membrane switch is a momentary electrical contact on/off switch that activates or deactivates an electric circuit. These are sometimes called single pole, single throw, normally open (SPSTNO) switches. Custom membrane switches are manufactured by screen printing the circuit directly onto a plastic substrate with silver or carbon conductive ink. The simple, versatile, durable, and economical design of a custom membrane switch makes it a superior alternative to the mechanical switch.
Industrial and Consumer Applications:
Medical testing and diagnostic equipment
Any industrial manufacturing equipment with a control panel
Household appliances such as microwave ovens and stoves
Retail/consumer applications such as vending machines, kiosks, exercise equipment, and gasoline pumps
Military equipment to handle rogue treatments
Applications:
Our Advantage:
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch |
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm |
0.5mm, 1.0mm,1.27mm, 2.54mm |
| 1. Electrical Properties | Membrane Switch | ||
| Electrical Level: | 35V(DC), 100mA,1W | ||
| Contact Resistance: | 10Ω~500 Ω | ||
| Insulation Resistance: | 100MΩ/100V | ||
| Dielectrics Voltage-resistance: | 250VRms(50~60Hz 1min) | ||
| Chattering Time: | ≤ 5ms | ||
| Life Time: | Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 | ||
| Tail Folding: | R>1,180 | ||
| 2. Mechanical Properties | |||
| Operating Force: | Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) | ||
| Switch Stroke: | Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm | ||
| 3. Environmental and Storage Conditions | |||
| Operation Temperature: | -40°C ~ +80°C | ||
| Storage Temperature: | -40°C ~ +80°C | ||
| Humidity: | 40°C, 90%~95%, 240 hours |
