Tactile Backlight Membrane Switch

Name: Tactile Backlight Membrane Switch
Brand: Shenzhen Lunfeng Technology Co., Ltd
SKU: BLMS231097
Availability: InStock

Brand Name:	Lunfeng
Model Number:	BLMS231097
MOQ:	1 piece
Payment Terms:	T/T, Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Name:

Tactile Green And Red LED Backlight Membrane Switch With Metal Dome And Transparent Lcd Window

Application:

Medical Equipment, Electronic Equipment, Home Appliance/Telecommunication Equipment...

Keypad Button Material:

Rubber, PET, Metal, Polyester, PET/PC/PMMA/PE/PVC

Color:

Pantone And RAL

Material:

PET PC PVC, Polyester, Polycarbonate, PET/PC/PVC, SUS304

Rear Adhesive:

3M467, 3M468, 3M9448, 3M9080...

Printing:

Screen Printing

Size:

Customized Size

Membrane Switch:

OEM Membrane Switch

Certification:

ISO9001: 2015

Connector:

Male, Femail, ZIF, Housing Connector

Key Option:

Flat, Embossing

Surface Finish:

Glossy, Matte

Feature:

Water-proof, Shielding, Backlight, Durable, Long Service Life

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

Tactile green Backlight Membrane Switch

Lcd Window Backlight Membrane Switch

3M9080 metal dome membrane switch

Product Description

Product name:

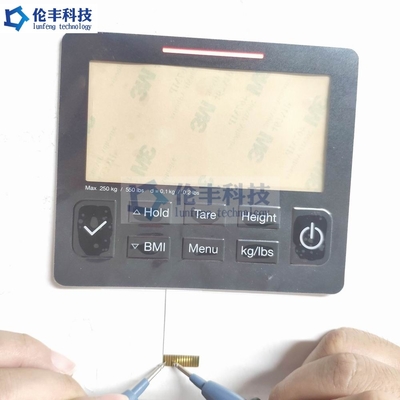

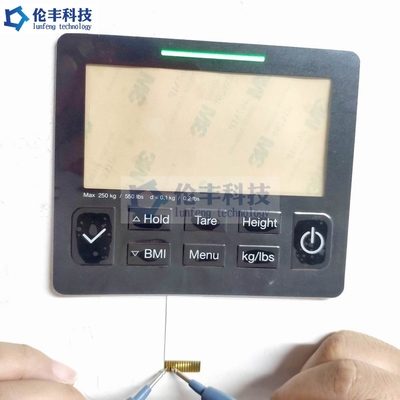

Tactile green and red LED Backlight Membrane Switch With Metal Dome And Transparent Lcd Window

Specification

> Graphic overlay: PET /PC

> Rear adhesive: 3M467/ 3M468/ 3M9495 /3M9080 ...

> Certification: ISO9001:2015 /ROHS/SG

> Payment terms: T/T, West Union

> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified

> Delivery time: 7~25 Working Days

1.Electrical Properties		Membrane Switch
Electrical Level:		35V(DC), 100mA,1W
Contact Resistance:		10Ω~500 Ω
Insulation Resistance:		100MΩ/100V
Dielectrics Voltage-resistance:		250VRms(50~60Hz 1min)
Chattering Time:		≤ 5ms
Life Time:		Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:		R>1,180

2.Mechanical Properties
Operating Force:		Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:		Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3.Environmental and Storage Conditions
Operation Temperature:		-40°C ~ +80°C
Storage Temperature:		-40°C ~ +80°C
Humidity:		40°C, 90%~95%, 240 hours

Tactile Backlight Membrane Switch 2

About US:

Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).

In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.

Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.

We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!

Welcome to contact us !

-------------------------------------------------------------------------------------------------------

Shenzhen Lunfeng Techonology Co., Ltd

Ms Cindy: +86-185 8842 9302, sales@lunfeng.cn

Ms Elva: +86-136 6269 7476, elva@lunfeng.cn (skype: elva_wong2), QQ: 1294012719

Tel: 0086-0755-27364719

Fax:0086-0755-27304721
