| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | MDMS-764 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product Name: | Waterproof Membrane Switch Membrane Keypad With Metal Domes | Application: | Industries Manufacturing |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Yellow, White, Blue | Materials: | PET F150 |
| Rear Adhesive: | 3M468 | Size: | Rectangle Shape, Customized Size |
| Connector Type: | PET Circuit With Black Connector | Key Type: | Flat Keys |
| Printing: | Silkscreen Printing And 3D Digital Printing | Feature: | Dust-resistance |
| High Light: | PET F150 Waterproof Membrane Keypad,flat keys Waterproof Membrane Keypad,PET metal dome membrane switch |
||

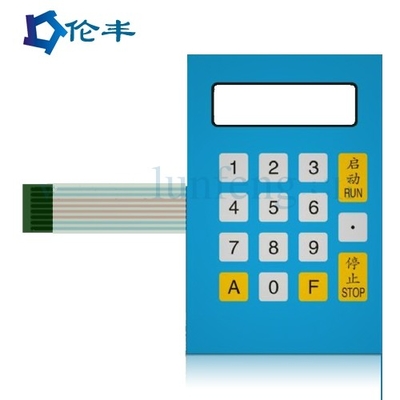

Waterproof Membrane Switch Membrane Keypad With Metal Domes
Switch to Technomark for Reliable Performance
Backed by over two decades of engineering and manufacturing experience, Technomark continues to provide the most dependable membrane switches. Our engineering department will apply the best industry standards and practices to your individual needs. Then our ISO certified quality system will ensure precise, repeatable fabrication.
Membrane Switch and Panel has worked with a range of different industries manufacturing the ideal membrane switch for our customer’s unique needs and specifications. If you feel a membrane switch solution would be appropriate for your user interface, contact us today to assist in the production of the best membrane switch for your specific application.
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
About US:
Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).
In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.
Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.
We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!
Welcome to contact us !
-------------------------------------------------------------------------------------------------------
Shenzhen Lunfeng Techonology Co., Ltd
