| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Lunfeng |
| Certification: | ISO9001:2015 |
| Model Number: | MDMS-782 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | First put into a polybag, then paked into a carton. According to clients' special requirements. |
| Delivery Time: | 7-25 working days, To be negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500000 Piece/Pieces per Month |
| Product Type: | Waterproof Membrane Switch Membrane Keypad Overlay Digital Printing | Application: | Industrial Contral |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Red, Green, Gray | Materials: | PET |
| Rear Adhesive: | 3M468 | Size: | Rectangle Shape, Customized Size |
| Connector Type: | With Black Connector | Key Type: | Embossed Keys |
| Certification: | ISO9001 ISO14001 ROHS CI FDA SGS | Keywords: | Membrane Keypad |
| Product Name: | OEM Service PET Membrane Keypad With Embossed Metal Dome | ||
| High Light: | Pantone Waterproof Membrane Keypad,3M468 Waterproof Membrane Keypad,digital printing waterproof touch keyboard |
||

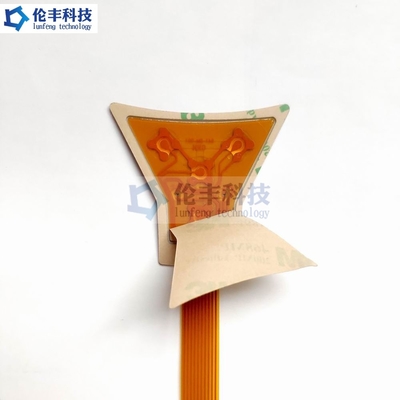

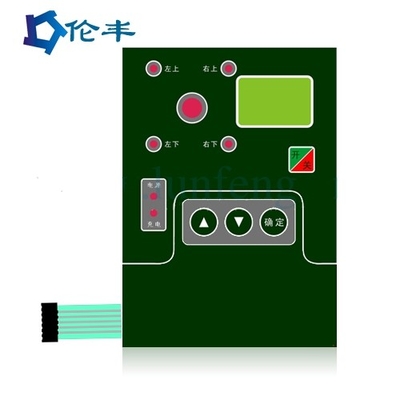

Waterproof Membrane Switch membrane keypad overlay digital printing
Membrane Switch Customization Options
We bring all the necessary parts and components together to create a finished product that meets your unique requirements: the membrane switch itself, a PCB as part of the assembly, a custom panel to support the switch and PCB, the exterior casing, LED lights, backlighting, waterproofing, LCD screens, and more. We’ll take every aspect of your complex custom membrane switch design under consideration, from the operational environment to visual designs and beyond.
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
About US:
Shenzhen Lunfeng Technology Co., Ltd. (“Lunfeng”) was estimated in 1995, mainly engaged in production, sale and service of all kinds of membrane switches, membrane overlay, PC, PVC, PET and aluminum plates, acrylic lenses, metal nameplate, touch screens, crystal epoxy, label papers and hot press/injection molding thermosetting composite materials ( BMC / SMC).
In strict compliance with ISO9001:2015 standard in production, we established a complete quality management system, ensuring strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure stable and reliable product quality which makes us taking the lead in the trade of Shenzhen.
Our company has over 200 employees for management, sale, engineering and production and a plant area of over 3,000 square meters. Our products sell well in America, Canada, the United Kingdom, France, Germany, Italy, Australia, Japan, Singapore, etc. Haiwen people know that only by high-quality products and perfect service can we win customer's trust and remain invincible in the competitive market.
We always adhere to the service tenet of "Quality Assurance, Timely Delivery, Reasonable Price, Considerate Service". We believe that with the efforts and hard work of our staff, we are bound to create a more brilliant future. We sincerely hope to cooperate with all customers for a bright future!
