| Product Name: | Back Light Membrane Switch With LEDs And Metal Dome | Used On: | Home Appliances And Device |
|---|---|---|---|
| Color: | Pantone Or RAL Color, Green, Blue, White, Black | Key Material: | PET 0.188 PET |
| Rear Adhesive: | 3M467/ 3M468 | Feature: | Metal Domes, LEDs |
| Printing: | Silkscreen Or Digital Printing,Screen Printing And 3D Digital Pringting | Key Option: | Tactile Key |
| Size: | Custom Size | ||
| High Light: | PET tactile metal dome switch,LEDs tactile metal dome switch,3M468 custom membrane switch panel |
||

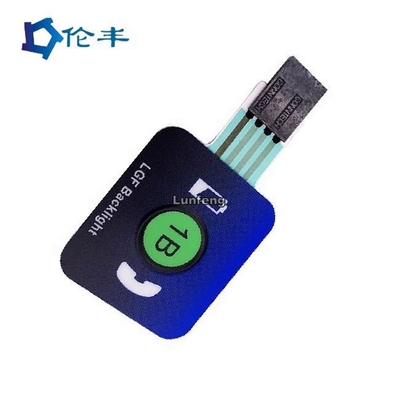

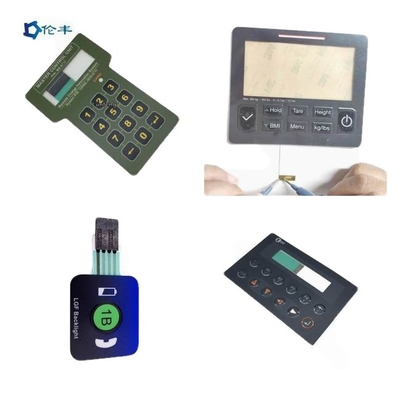

Back Light Membrane Switch with LEDs and metal dome
Application of Light Guide Film
Being a cost-effective backlit option, LGF membrane switch is fairly common among a number of industries. For instance, it is perfect for designs that need backlit tactile keys. With the LGF membrane switch, you can either light all the keys are the same time or you can brighten them up individually.
This majorly depends upon the requirement of your product. It is possible to backlit big areas using multiple colors. Thus, making this an amazing technology even for status indicators including the sensors and the batteries, etc.
Below are some other applications that are well suited for LGF technology.
Membrane switch with LGF :
1.LGF is a thinner construction, without limited to devices thickness.
2.LGF has a limited impact on the tactile feel of buttons.
3.LGF can provide even backlight across larger and small areas.
4.Reliability and long lifetime, Low-Cost
Efficient power consumption and operating on lower voltage
5.Colors: White, Blue, Red, Green is a common choice.
Our Advantage:
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
Various automtic machine control keypad
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
