PVC Graphic Panel Overlay

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFGO308
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month

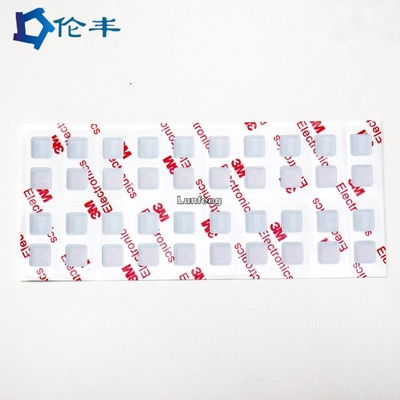

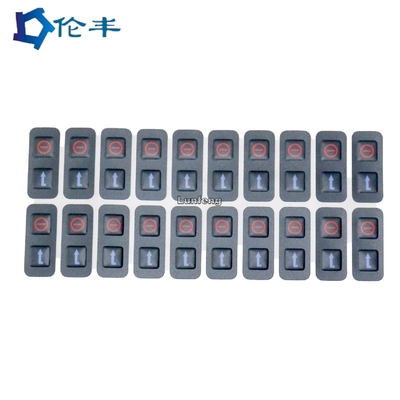

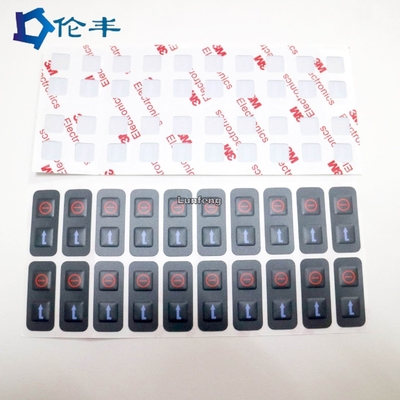

Product: Customized PET PC PVC Graphic Panel For Tester Name: Touch Membrane Overlay
Colors: Pantone/ RAL Color, Black, Blue, Red Material Surface: Matte Texture
Rear Adhesive: 3M9448 Material: PET, PC, PVC
Surface Finishing: Embossed Keys, Glossy Shape: Customized Rectangle Shape
Type: Meet Customer's Demand Usage: Electronic Industry Ect
High Light:

Customized Touch Membrane Overlay

,

PVC Material Graphic Panel Overlay

,

Graphic Panel Overlay For Tester

Customized PET PC PVC Graphic panel for Tester



MAIN USES AND APPLICATIONS FOR GRAPHIC OVERLAYS



Custom graphic overlay printing comes with a lot of options and advantages. Overlay design specialists can incorporate a number of unique options when building a graphic overlay, such as:

[graphic overlays] Bright colors and clear designs
Various substrates, materials – Polycarbonate – Lexan, Polyester – Mylar, Vinyl – PVC, Metal, and Aluminum.
Various bonding adhesives – Permanent, Repositional, Removable.
Texturing or hard coating – Gloss, Matte, Velvet, Brushed.
Various surface finishes, matte – gloss
UV / Outdoor durability
LED and Display Windows – Clear, Anti-Glare, color tinted, dead front
Shape and size, thickness specifications – Embossed, Formed, Raised, Domed
Use of various manufacturing processes, such as screen printing, digital print, laminating, embossing, die cutting, laser cutting, fabrication.




Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
