| Product: | Graphic Panel Overlay PET, PC, PVC Embossed Button | Application: | Control Keypad Panel |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Silver, Red, BLACK | Material Surface: | Matte |
| Rear Adhesive: | 3M9080 | Material: | PC, PVC, PET |
| Printing: | Silk Screen Printing | Type: | Adhesive Sticker |
| High Light: | PVC embossed button Graphic Panel Overlay,PET PC Graphic Panel Overlay,control panel graphic overlays |
||

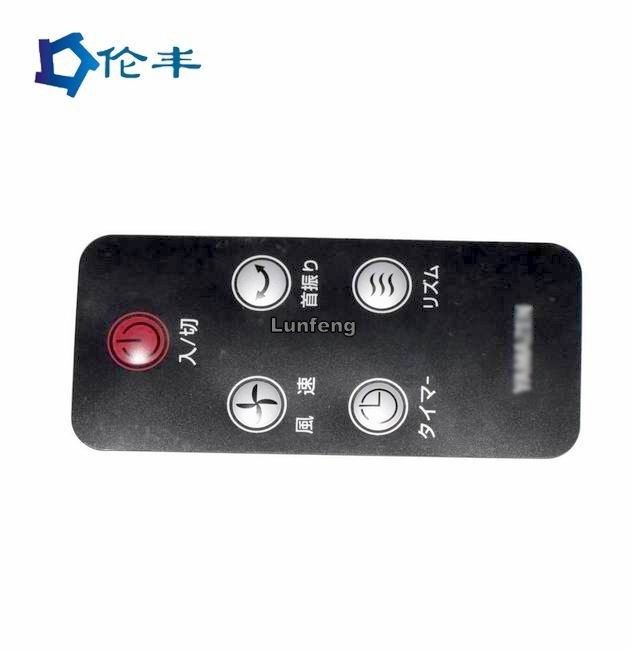

Graphic Panel Overlay PET, PC, PVC embossed button
Graphic overlay and control panels types
Screen printing process of custom graphic overlay includes front printing and reverse printing. Apply them to membrane switches of different materials and types, and you can divide them into the flat overlay and raised overlay.
The flat membrane overlay is the simplest type, which touch screen is also flat. Of course, some are backlit with LED display which has application even in the dark. It mainly uses different PMS colors of text, lines, and color blocks to indicate or distinguish various functional parts. Also, the customer can choose different industrial overlay materials and double-sided tape according to their own needs. In general, we offer polyesters and polycarbonates as raw materials.
The embossing overlay of membrane keyboard is developed on the basis of the flat one. And, it’s a kind of relatively beautiful and practical control panel. For membrane keypad company, the process to create graphic panels is based on the ordinary one. Through an embossing mold, graphic overlay manufacturers heat press it. So, the button portion is slightly raised to form a stereo button. Embossing buttons can accurately locate the shapes sizes of the key body and improves the recognition speed. What’s more, the below metal domes make the touch of the operator more sensitive. At the same time, it enhances the decorative effect of the appearance of the tactile switch.
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
