| Product: | Graphic Panel Overlay Custom Control Panel Membrane Switch | Application: | Control Panel Membrane Switch |
|---|---|---|---|
| Colors: | Pantone/ RAL Color, Red, BLACK | Material Surface: | Glossy Red Transparent LCD Window |
| Rear Adhesive: | 3M468 | Material: | PET PC PVC |
| Printing: | Silk Screen Printing | Feature: | Waterproof+Eco-friendly. |
| Type: | Meet Customer's Demand, Adhesive Sticker | Usage: | OEM Electronics |
| High Light: | 3M468 Graphic Panel Overlay,PET Graphic Panel Overlay,PC control panel overlay printing |
||

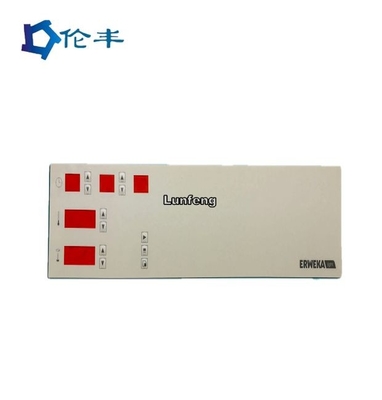

Graphic Panel Overlay Custom Control Panel Membrane Switch

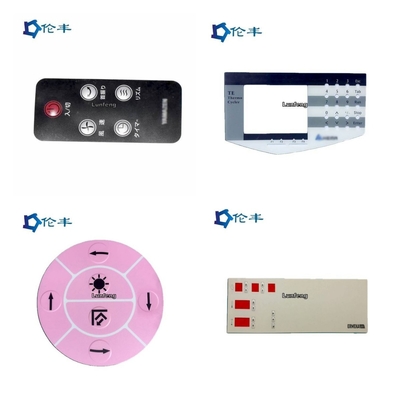

Control Panel Graphic Overlays
A control panel overlay is a plastic fascia screen printed or digitally printed on the rear of a clear plastic substrate. The printed detail is viewed through the front face of the control panel. Control panel overlays differentiate themselves from a panel in that graphic overlays incorporate interactivity, durability, and functionality with the piece. Panels are usually a protective component that may or may not have cut-outs for buttons, switches, or windows.
Rigid control panel graphic overlays provide a flat surface that protects buttons and retail displays in industries that require frequent cleaning or involve regular exposure to dirt or chemicals. While the panel overlays are designed to create a clean, flat look, custom graphic designs can be embossed to deliver textural context to the user and enable the designer to emphasize a section or button.
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
| Items | Silver Printed Circuit | Copper Etched FPC Circuit |
| Material | PET (Polyester) | Copper |
| Conductor | Printed silver | Copper |
| Contact Fingers | Silver and Carbon | Gold plated |
| Contact Buttons Pads | Silver | Gold plated |
| Life & Reliability | normal | good |
| Stability | normal | good |
| Resistance | low | Very low |
| Cost | low | high |
| Lead Time | 2-3 days | 7-10 days |
| Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
|
1.Electrical Properties |
Membrane Switch |
||
|
Electrical Level: |
35V(DC), 100mA,1W |
||
|
Contact Resistance: |
10Ω~500 Ω |
||
|
Insulation Resistance: |
100MΩ/100V |
||
|
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
|
Chattering Time: |
≤ 5ms |
||
|
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
|
Tail Folding: |
R>1,180 |
||
|
|
|
||
|
2.Mechanical Properties |
|
||
|
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
|
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
|
||
|
3.Environmental and Storage Conditions |
|
||
|
Operation Temperature: |
-40°C ~ +80°C |
||
|
Storage Temperature: |
-40°C ~ +80°C |
||
|
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
