Product: | Graphic Panel Overlay Front Control Panel Graphics Overlay | Application: | Control Keypad Panel Overlay |
---|---|---|---|
Colors: | Pantone/ RAL Color, Silver, Red, BLACK | Material Surface: | Glossy |
Rear Adhesive: | 3M467 | Material: | PET |
Printing: | Silk Screen Printing | Size: | Customized Size |
Feature: | Durable, Eco-friendly | ||
High Light: | Graphic front control panel,Silk Screen front control panel,PET digitally printed overlays |

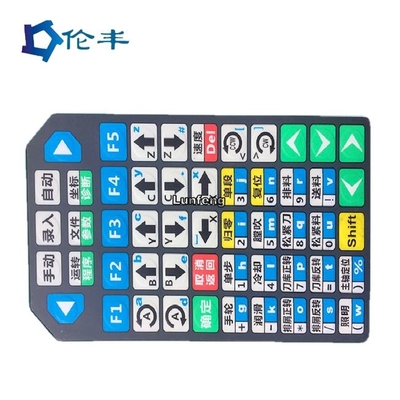

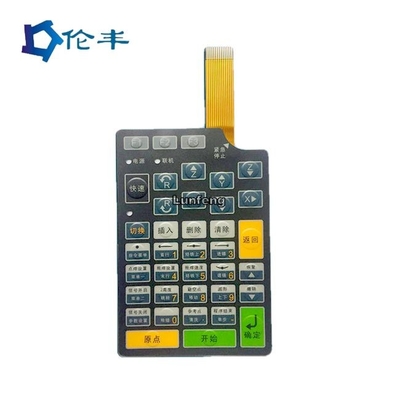

Graphic Panel Overlay Front Control Panel Graphics Overlay
Design the perfect membrane switch overlay
your graphic overlays are always custom designed according to your specifications. Our methods allow us to integrate a wide variety of technical elements, so you can provide your users with a human-machine interface (HMI) that meets their expectations. Designed to be consistent with your brand image, our graphic overlays are the perfect finishing touch for your products.
Here are just a few of the options available to make your membrane switch graphic overlays unique.
Our Advantage:
We Focus in membrane switch and related items.
Applications:
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
Items | Silver Printed Circuit | Copper Etched FPC Circuit |
Material | PET (Polyester) | Copper |
Conductor | Printed silver | Copper |
Contact Fingers | Silver and Carbon | Gold plated |
Contact Buttons Pads | Silver | Gold plated |
Life & Reliability | normal | good |
Stability | normal | good |
Resistance | low | Very low |
Cost | low | high |
Lead Time | 2-3 days | 7-10 days |
Pitch | 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm | 0.5mm, 1.0mm, 1.27mm, 2.54mm |
1.Electrical Properties |
Membrane Switch |
||
Electrical Level: |
35V(DC), 100mA,1W |
||
Contact Resistance: |
10Ω~500 Ω |
||
Insulation Resistance: |
100MΩ/100V |
||
Dielectrics Voltage-resistance: |
250VRms(50~60Hz 1min) |
||
Chattering Time: |
≤ 5ms |
||
Life Time: |
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000 |
||
Tail Folding: |
R>1,180 |
||
|
|
||
2.Mechanical Properties |
|
||
Operating Force: |
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz) |
||
Switch Stroke: |
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm |
||
|
|
||
3.Environmental and Storage Conditions |
|
||
Operation Temperature: |
-40°C ~ +80°C |
||
Storage Temperature: |
-40°C ~ +80°C |
||
Humidity: |
40°C, 90%~95%, 240 hours |
FAQ:
Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.
Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.
Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.
Q4 : What payment do you accept ?
A : TT/ Western Union.
Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.
Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
