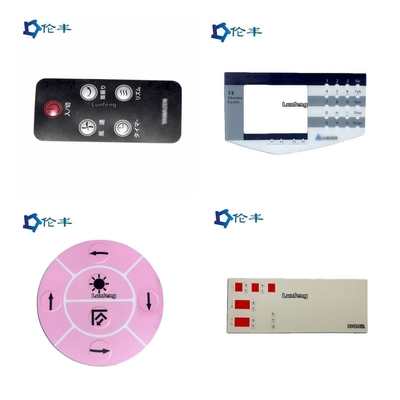

RoHS PC Lexan Remote Control Panel 3M467 Pantone Polycarbonate Graphic Overlays

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: LFGPO01
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product: Graphic Panel Overlay RoHS Remote Control Panel Overlay Application: Various Industry Control Keypad Panel
Colors: Pantone/ RAL Color, PINK, BLACK Material Surface: Matte
Rear Adhesive: 3M467 Material: PET PC Lexan PVC
Surface Finishing: Embossing Or As Customer Requirement Keypad Button Material: PET, PC, PVC, Lexan
Membrane Switch: Control System Shape: Customized Round
High Light:

3M467 remote control panel

,

RoHS PC lexan remote control panel

,

Pantone polycarbonate graphic overlays

Graphic Panel Overlay RoHS Remote Control Panel Overlay

Graphic overlay definition
There are a wide variety of graphic overlay materials, including PET, PC, and PVC. At first, overlay manufacturers use screen printing or digital printing technology to integrate graphics, texts, and logos into one. Then, stick the double sides adhesive substrates of different materials on it to make the membrane switches graphic overlays. It has excellent features such as waterproof, dustproof, anti-friction and non-fading. Currently, its application includes the user interface of domestic appliance, communication equipment, instrument, industrial control, and other fields.


Our Advantage:

We Focus in membrane switch and related items.


Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system






Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm







1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours





FAQ:



Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

 RoHS PC Lexan Remote Control Panel 3M467 Pantone Polycarbonate Graphic Overlays 0RoHS PC Lexan Remote Control Panel 3M467 Pantone Polycarbonate Graphic Overlays 1
