|Product Name:||PET Membrane Switch Keypad With Tactile Dome Blue LED||Used On:||Telecommunication Equipment|

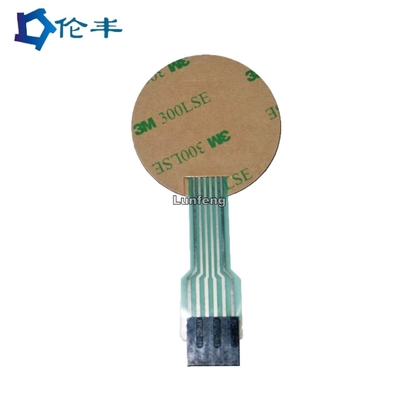

|ColorS:||Pantone RAL Color, Blue, Green, White||Rear Adhesive:||3M 300 LSE|
|Feature:||Metal Domes, Matte Surface, Green LED||Switch Type:||Membrane Switch Keypad|
|Connector:||2.54mm Female Connector||Key:||Key Embossing|
|Cable:||Custom Cable Length||Certification:||ISO9001 ISO14001 ROHS CI FDA SGS|
Membrane Switch keypad with Tactile Dome,
imbedded LED Membrane Switch keypad,
RAL Membrane Switch Keypad

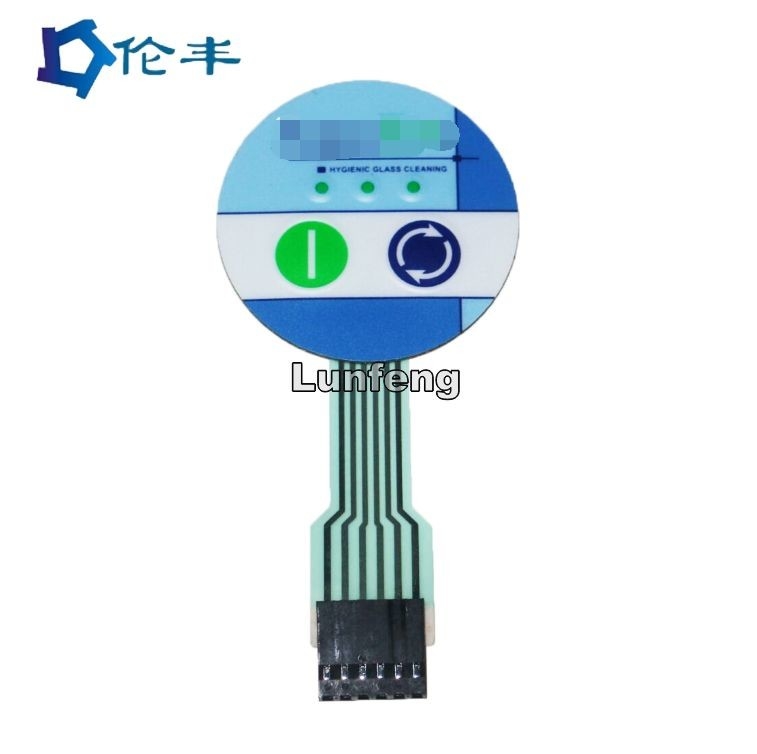

PET Membrane Switch keypad with Tactile Dome blue LED
Components of a Membrane Switch
Membrane switches are made up of two flexible printed circuits, physically separated by a spacer. When the button is pressed, holes in the spacer allow the two circuits to contact completing the circuit. The printed top layer is known as the Graphic Overlay. It is normally made of clear polycarbonate or polyester, and reverse printed to protect the image from wear, solvents and abrasion.
Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capabilities to create the ideal custom user interface for their products.
Membrane switches are a thin durable form of momentary switching that is commonly used throughout industry. Membrane switch is made of several layers including soft insulating material and electric material, with free lock and touch feature. It is assembled with the function of switch, front panel, graphic overlays, LCD Transparent windows, imbedded LED, soft circuit panel, male connector and electroluminescent (EL) backlighting.
We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Short Lead time for samples and Mass production
Whole solution design available
* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
|Pitch||0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm||0.5mm, 1.0mm, 1.27mm, 2.54mm|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
