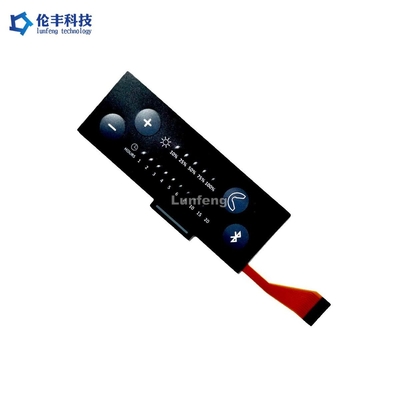

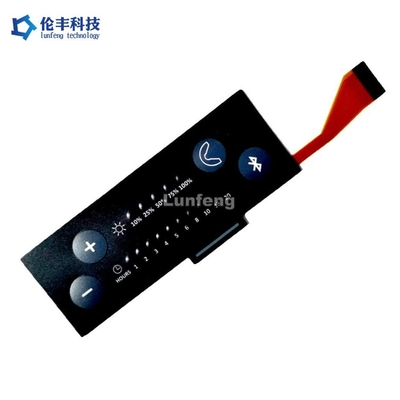

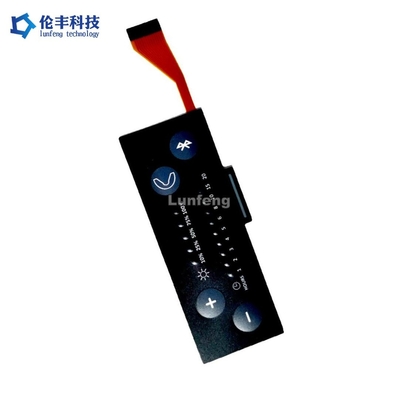

PET Embossed Keys LED Membrane Switch , Custom FPC LED Membrane Keypad

PET Embossed Keys LED Membrane Switch , Custom FPC LED Membrane Keypad

Brand Name:	Lunfeng
Model Number:	LFZDX153
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	500000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001:2015

Name:

Custom PET Embossed Keys LED Membrane Switch, Custom Membrane Keyboard FPC Design

Material:

PET, Polyester(PET), PET(polyester)/PC(polycarbonate),

Rear Adhesive:

3M467/468, 3M 9448

ColorS:

Pantone/ RAL Color, Black, White

Feature:

Matte Surface, Silver Circuit FPC

Connector:

1.0mm Pitch, Black Connector, Customized Size

Key:

Embossing Keys With Metal Domes,

LED:

Color Leds, LGF Film

Window:

No LCD Window, No Punch Holes

Packaging Details:

First put into a polybag, then paked into a carton. According to clients' special requirements.

Supply Ability:

500000 Piece/Pieces per Month

Highlight:

Pitch 1.0mm LED Membrane Switch

RAL colour LED Membrane Switch

FPC LED Membrane Keypad

Product Description

Custom PET Embossed Keys LED Membrane Switch,

Custom Membrane Keyboard FPC Design

Membrane Switch is an operating system that integrates key functions, indicating elements and instrument panels. It consists of four parts: panel, upper circuit, isolation layer and lower circuit. When the membrane switch is pressed, the contacts of the upper circuit are deformed downward, and are in contact with the pole plate of the lower circuit. After the finger is released, the contacts of the upper circuit bounce back, the circuit is disconnected, and the circuit triggers a signal. The membrane switch has strict structure, beautiful appearance and good sealing performance.

Applications:

home appliances and device
Security Protection systems with Cipher Code
Various industry control keypad panel
consumer electronics and 3C item
Thrapy medical system and device
Various automtic machine control keypad
Telecommunication Equipment
Medical Equipment
Industrial Equipment
Household Equipment
Remote Controller
Control system

Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Items	Silver Printed Circuit	Copper Etched FPC Circuit
Material	PET (Polyester)	Copper
Conductor	Printed silver	Copper
Contact Fingers	Silver and Carbon	Gold plated
Contact Buttons Pads	Silver	Gold plated
Life & Reliability	normal	good
Stability	normal	good
Resistance	low	Very low
Cost	low	high
Lead Time	2-3 days	7-10 days
Pitch	0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm	0.5mm, 1.0mm,1.27mm, 2.54mm

1. Electrical Properties		Membrane Switch
Electrical Level:		35V(DC), 100mA,1W
Contact Resistance:		10Ω~500 Ω
Insulation Resistance:		100MΩ/100V
Dielectrics Voltage-resistance:		250VRms(50~60Hz 1min)
Chattering Time:		≤ 5ms
Life Time:		Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:		R>1,180

2. Mechanical Properties
Operating Force:		Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:		Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3. Environmental and Storage Conditions
Operation Temperature:		-40°C ~ +80°C
Storage Temperature:		-40°C ~ +80°C
Humidity:		40°C, 90%~95%, 240 hours

FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
