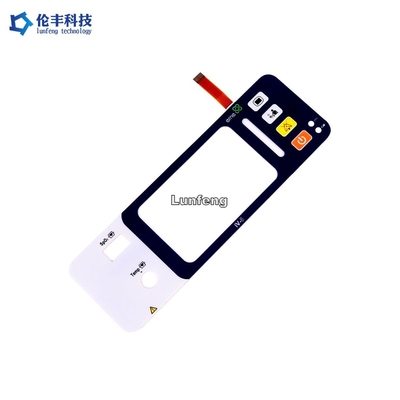

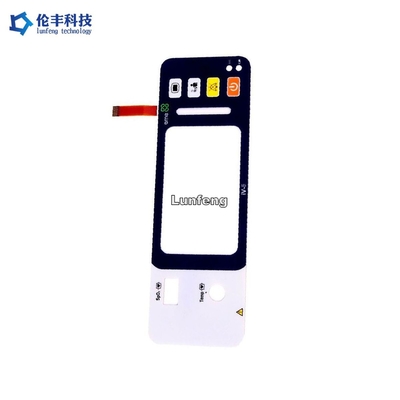

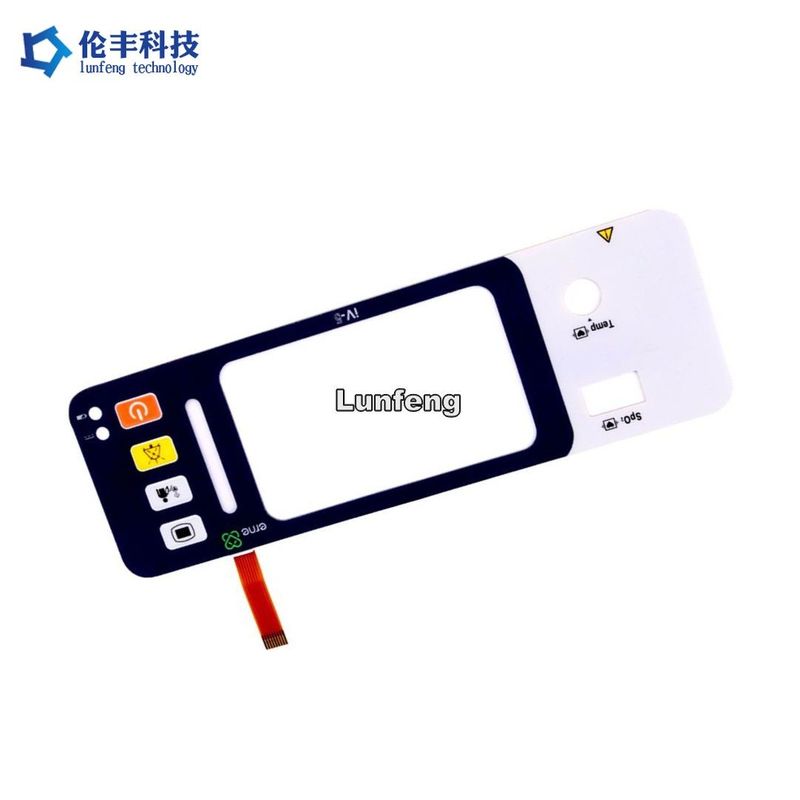

|Name:||Polyester(PET) LED Membrane Switch, Key Membrane Switch Customized Design||Material:||PET, Polyester(PET), Polyester 0.15mm|
|Rear Adhesive:||3M467/468, 3M 9448||ColorS:||Pantone/ RAL Color, Black, White, Red, Yellow|
|Feature:||Matte Surface, Silver Circuit FPC||Connector:||1.0mm Pitch, Black Connector,|
|Key:||Embossing Keys With Metal Domes,||LED:||Color Leds, LGF Film|
|Window:||LCD Window, 3 Punch Holes|
3M 9448 Key Membrane Switch,
3M468 Key Membrane Switch,
Pantone Key Membrane Switch
Polyester(PET) LED Membrane Switch, Key Membrane Switch Customized Design
Polyester, polycarbonate and polyurethane typically make up the components of a membrane switch panel.
Internally, the switching mechanisms are via metal domes or conductive shorting pads.
Further enhancements include surface mount LEDs, water clear widows, dead fronts, back-lighting with optic fibre or electroluminescence and solid mounting plates.
Terminations to the PCB can be via Berg connectors and Nicomatic connectors or designed to fit Zif connectors.
Membrane switches and keypads are a fully customisable solutions for Human – Machine Interface (HMI) requirements.
Each product we design and manufacture is unique and has its own requirement regarding environmental, mechanical, electrical and physical appearance properties.
With our decades of experience, Our Industries is able to help you through the specification process to make sure your products HMI solution is suited perfectly.
|Items||Silver Printed Circuit||Copper Etched FPC Circuit|
|Contact Fingers||Silver and Carbon||Gold plated|
|Contact Buttons Pads||Silver||Gold plated|
|Life & Reliability||normal||good|
|Lead Time||2-3 days||7-10 days|
0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm
0.5mm, 1.0mm,1.27mm, 2.54mm
|1. Electrical Properties||Membrane Switch|
|Electrical Level:||35V(DC), 100mA,1W|
|Contact Resistance:||10Ω~500 Ω|
|Dielectrics Voltage-resistance:||250VRms(50~60Hz 1min)|
|Chattering Time:||≤ 5ms|
|Life Time:||Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000|
|2. Mechanical Properties|
|Operating Force:||Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)|
|Switch Stroke:||Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm|
|3. Environmental and Storage Conditions|
|Operation Temperature:||-40°C ~ +80°C|
|Storage Temperature:||-40°C ~ +80°C|
|Humidity:||40°C, 90%~95%, 240 hours|
