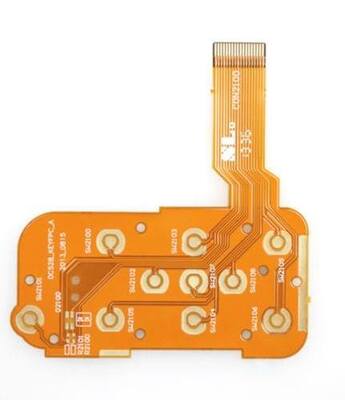

Gold Plating FPC Flexible Circuit Board with 0.05mm Minimum Trace Width and Acrylic Or Epoxy Adhesive

Brand Name:	OEM ODM
MOQ:	1pc
Price:	Depending On Design
Payment Terms:	TT
Supply Ability:	/

Detail Information

Product Description

Detail Information

Certification:

Iso9001:2015

Applications:

Consumer Electronics, Medical Devices, Automotive, Aerospace

Minimumtracewidth:

0.05mm

Copper Thickness:

1/2OZ 1OZ 2OZ 3OZ,1oz / 1/2 O Z/ 1/3 Oz

Color:

Yellow

Solder Mask:

Yellow PI Film

Electricalperformance:

Low Resistance And Capacitance

Adhesivetype:

Acrylic Or Epoxy

Surface Finishing:

Gold Plating

Packaging Details:

Bubble Foam Carton

Supply Ability:

Highlight:

Gold Plating FPC Flexible Circuit Board

0.05mm Minimum Trace Width Flexible PCB Circuit Board

Acrylic Or Epoxy Adhesive FPC Flexible Printed Circuit

Product Description

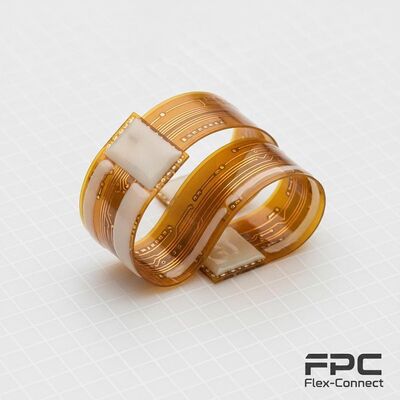

Can Bend And Fold FPC Flexible Circuit Board

Advanced FPC Flexible Circuit Board engineered for electronic connections, featuring acrylic or epoxy adhesive types. This highly reliable solution meets demanding requirements of modern electronic applications with exceptional flexibility and durability.

Product Overview

The FPC Flexible Circuit Board is designed for high-performance applications across consumer electronics, automotive, medical devices, and more. Its versatile design supports complex bending and folding while maintaining optimal functionality and longevity.

Key attributes include multiple copper thickness options (1/2 OZ, 1 OZ, 2 OZ, 3 OZ), gold plating surface finishing for enhanced corrosion resistance and solderability, distinctive yellow color for easy identification, and precision manufacturing with minimum trace spacing of 0.05mm for high circuit density.

Key Features

Product Name: FPC Flexible Circuit Board
OEM/ODM available for customization
Copper Thickness Options: 1/2OZ, 1OZ, 2OZ, 3OZ, 1oz / 1/2 OZ / 1/3 Oz
Minimum Trace Width: 0.05mm for high precision
Color: Yellow
Electrical Performance: Low resistance and capacitance ensuring reliable signal transmission
Compatible with Flexible Rigid PCB designs
Suitable for FPC Membrane Switch applications

Technical Specifications

Parameter	Specification
Minimum Trace Width	0.05mm
Minimum Trace Spacing	0.05mm
Copper Thickness	0.5oz To 3oz (including 1/2OZ, 1OZ, 2OZ, 3OZ, 1oz / 1/2 OZ / 1/3 Oz)
Flexibility	High, Can Bend And Fold
Applications	Consumer Electronics, Medical Devices, Automotive, Aerospace
Color	Yellow
Electrical Performance	Low Resistance And Capacitance
Adhesive Type	Acrylic Or Epoxy

Applications

This FPC Flexible Circuit Board serves multiple industries including consumer electronics (smartphones, tablets, wearables), medical devices (diagnostic equipment, monitoring systems), automotive (ADAS, infotainment units), and aerospace (avionics, communication systems).

Customization Services

We offer comprehensive FPC Flexible Circuit Board customization using premium Polyimide (PI) or Polyester (PET) materials. Services include design consultation, prototype development, and manufacturing with copper thickness options from 0.5oz to 3oz and minimum trace width of 0.05mm.

Frequently Asked Questions

What is the brand name of the flexible circuit board?

The brand name is OEM ODM.

Where is the place of origin for this FPC Flexible Circuit Board?

The product is made in Guangdong.

What certifications does this flexible circuit board have?

It is certified with ISO9001:2015.

What is the minimum order quantity for this product?

The minimum order quantity is 1 piece.

How long does delivery take after placing an order?

Delivery time is typically 7-10 working days.

What are the payment terms for purchasing this flexible circuit board?

Payment terms are TT (Telegraphic Transfer).
