Embossed Graphic Panel Overlay

Embossed Graphic Panel Overlay

Brand Name: Lunfeng
Model Number: CTMS894023024
MOQ: 1 piece
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001:2015
Name:
Tactile Embossed Key Silkscreen Printing Custom Graphic Overlay Manufacture In China
Application:
Medical Equipment, Electronic Equipment, Home Appliance/Telecommunication Equipment...
Keypad Button Material:
Rubber, PET, Metal, Polyester, PET/PC/PMMA/PE/PVC
Color:
Pantone And RAL
Material:
PET PC PVC, Polyester, Polycarbonate, PET/PC/PVC, SUS304
Rear Adhesive:
3M467, 3M468, 3M9448, 3M9080...
Printing:
Screen Printing
Size:
Customized Size
Membrane Switch:
OEM Membrane Switch
Certification:
ISO9001: 2015
Connector:
Male, Femail, ZIF, Housing Connector
Key Option:
Flat, Embossing
Surface Finish:
Glossy, Matte
Feature:
Water-proof, Shielding, Backlight, Durable, Long Service Life
Packaging Details:
First put into a polybag, then paked into a carton. According to clients' special requirements.
Supply Ability:
500000 Piece/Pieces per Month
Highlight:

tactile embossed Graphic Panel Overlay

,

Flat Graphic Panel Overlay

,

custom control panel overlay

Product Description
Product name:

tactile embossed key silkscreen printing custom graphic overlay manufacture in China


Specification

> Graphic overlay:   PET /PC

> Rear adhesive:  transparent adhesive / 3M467/ 3M468/ 3M9495 /3M9080 ...



> Certification: ISO9001:2015 /ROHS/SG

> Payment terms: T/T, West Union

> Shipping by: UPS/ Fedex /DHL /TNT or Other Ways Specified

> Delivery time: 7~25 Working Days


1.Electrical Properties
Membrane Switch
Electrical Level:
35V(DC), 100mA,1W
Contact Resistance:
10Ω~500 Ω
Insulation Resistance:
100MΩ/100V
Dielectrics Voltage-resistance:
250VRms(50~60Hz 1min)
Chattering Time:
≤ 5ms
Life Time:
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding:
R>1,180


2.Mechanical Properties

Operating Force:
Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke:
Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm


3.Environmental and Storage Conditions

Operation Temperature:
-40°C ~ +80°C
Storage Temperature:
-40°C ~ +80°C
Humidity:
40°C, 90%~95%, 240 hours

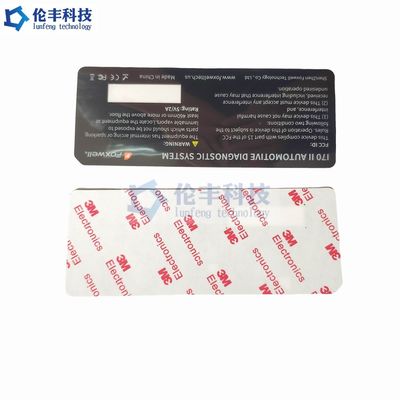

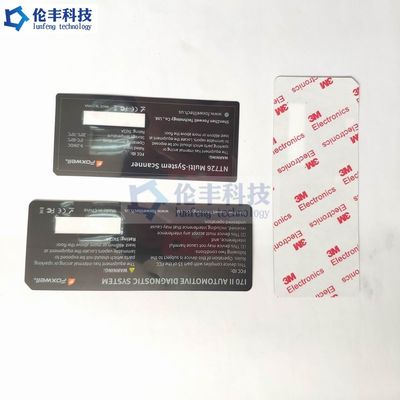

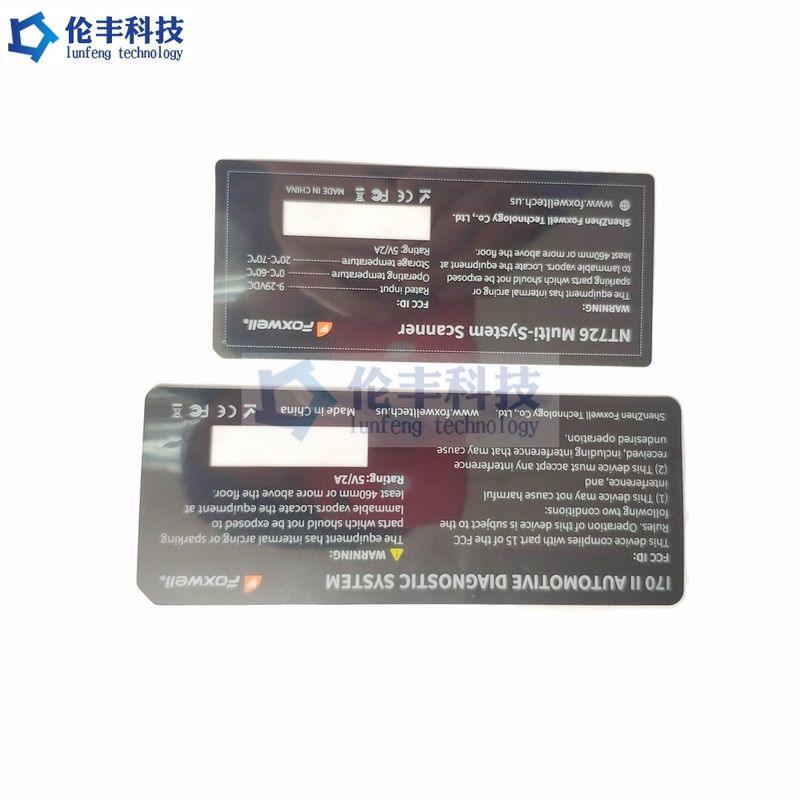

Embossed Graphic Panel Overlay 0Embossed Graphic Panel Overlay 1Embossed Graphic Panel Overlay 2




Embossed Graphic Panel Overlay 3
