Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Lunfeng
Certification: ISO9001:2015
Model Number: MDMS-758
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: First put into a polybag, then paked into a carton. According to clients' special requirements.
Delivery Time: 7-25 working days, To be negotiated
Payment Terms: T/T, Western Union
Supply Ability: 500000 Piece/Pieces per Month
Product Name: Flat Membrane Switch Custom Non-tactile Keys Memrbane Keypad Usage: Remote Controller
Color: Accroding To Pantone Or RAL Color Material: PC Or PET
Rear Adhesive: 3M467/ 3M468 Printing Color: Screen Printing, Blue, White
Size: Rectangle Shape, Customized Size Connector Type: ZIF
Feature: Durable Keypad Button Material: PC Or PET
Back Adhesive: 3M467/468 Key Option: Flat
High Light:

Flat membrane button panel

,

non tactile membrane button panel

,

3M467 membrane switch keyboard

Flat Membrane Switch membrane panel without metal dome keypad membrane



Membrane switch assemblies incorporate electronic components, such as LEDs, seven-segment LEDs, photo diodes resistors and capacitors that are integrated to the membrane switch substrate using conductive adhesive technology.



Lunfeng’s advanced manufacturing can print double-sided silver circuits producing the equivalent of four layer PCBs or the elimination of printed ‘crossovers’  for environmentally exposed applications. These advances are customized in a variety of configurations to fit increasingly smaller, more demanding and cost competitive applications.



For higher level integration, Lunfeng has experience and manufacturing to include copper flex circuits and PCB assemblies, LCDs, plastic housings or metal backers and lenses.





1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180





2.Mechanical Properties



Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm





3.Environmental and Storage Conditions



Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours






FAQ:



Q1: Are you a factory or trade company?
A :  Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay   for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
      2. If you have your own forwarder, we can cooperate with them.

Q6 :  How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch,  10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

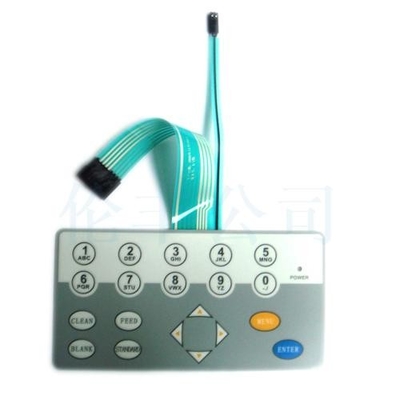

Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 0

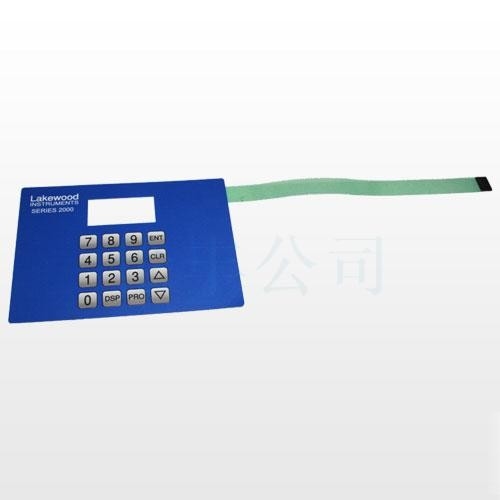

Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 1








Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 2Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 3Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 4Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 5Non Tactile Flat Membrane Button Panel 3M467 Membrane Switch Keyboard 6
